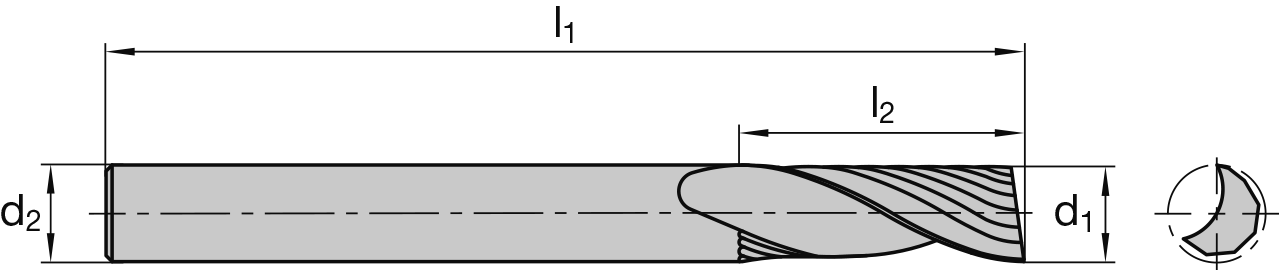

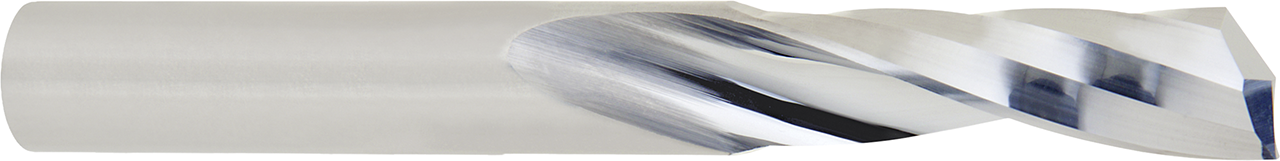

65-000 Einschneider – Vollhartmetall Super O-Fräser mit Rechtsdrall
65-000 SFR VHM 0,0625x0,25i 1Z
: 2601136
(J22A) | (A1) | (B2) | (B5) | (C3) | (F21) | |
|---|---|---|---|---|---|---|
2601136 | 65-000 | 1,5875 | 6,35 | 50,8 | 3,175 | 1 |
2601137 | 65-013 | 3,175 | 12,7 | 50,8 | 3,175 | 1 |
2601138 | 65-018 | 4,7625 | 15,875 | 50,8 | 6,35 | 1 |
2601139 | 65-019 | 4,7625 | 15,875 | 50,8 | 4,7625 | 1 |
2601140 | 65-020 | 4,7625 | 31,75 | 76,2 | 6,35 | 1 |
2601141 | 65-021 | 4,7625 | 22,225 | 63,5 | 6,35 | 1 |
2601142 | 65-025 | 6,35 | 22,225 | 63,5 | 6,35 | 1 |
2601143 | 65-026 | 6,35 | 31,75 | 76,2 | 6,35 | 1 |
2601144 | 65-027 | 6,35 | 38,1 | 76,2 | 6,35 | 1 |
2601145 | 65-033 | 9,525 | 28,575 | 76,2 | 9,525 | 1 |
2659957 | 65-002M | 1 | 4 | 35 | 3 | 1 |
2659958 | 65-010M | 3 | 12 | 50 | 3 | 1 |
2659959 | 65-017M | 4 | 12 | 50 | 4 | 1 |
2659960 | 65-027M | 6 | 25 | 76 | 6 | 1 |
6601938 | 65-010 | 3,175 | 6,35 | 50,8 | 6,35 | 1 |
6601939 | 65-012 | 3,175 | 12,7 | 50,8 | 6,35 | 1 |
6601944 | 65-023 | 6,35 | 15,875 | 50,8 | 6,35 | 1 |
7068618 | 65-023M | 6 | 16 | 64 | 6 | 1 |
9125266 | 65-000M | 2 | 6 | 50 | 3 | 1 |
9125267 | 65-018M | 5 | 16 | 64 | 6 | 1 |
9125269 | 65-033M | 10 | 29 | 76 | 10 | 1 |
