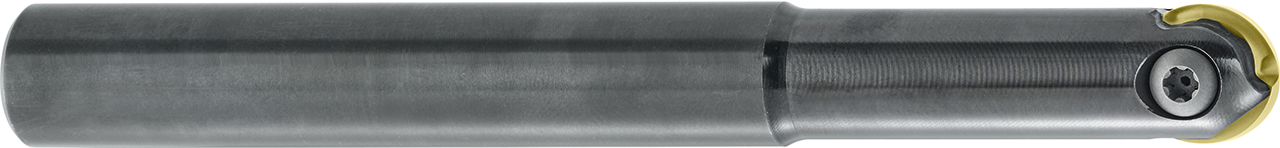

CopyMax1 (Schaftausführung)
EBC R12.012AN120-I
: 7254109

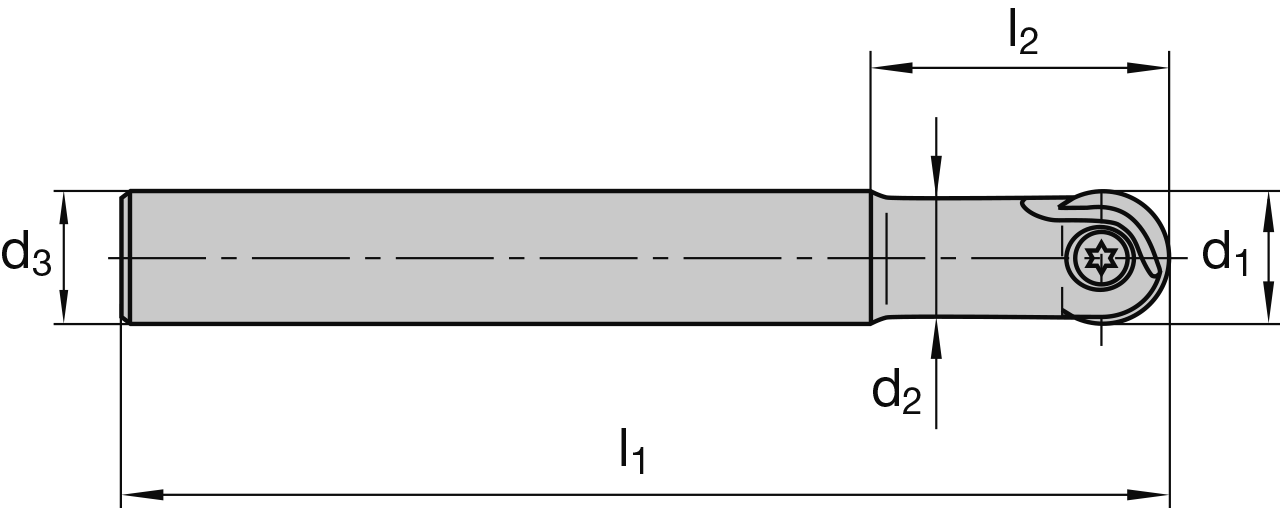

(A1) | (B3) | (B5) | (C3) | (A3) | (B2) | (F21) | |
|---|---|---|---|---|---|---|---|
7254109 | 12 | 50 | 120 | 12 | 11 | 6 | 2 |
7254110 | 12 | 60 | 160 | 12 | 11 | 6 | 2 |
7254111 | 16 | 55 | 140 | 16 | 14,5 | 8 | 2 |
7254112 | 16 | 80 | 200 | 16 | 14,5 | 8 | 2 |
7254113 | 20 | 60 | 140 | 20 | 18,5 | 10 | 2 |
7254114 | 20 | 80 | 200 | 20 | 18,5 | 10 | 2 |
7254115 | 25 | 75 | 140 | 25 | 23 | 12,5 | 2 |
7254116 | 25 | 75 | 200 | 25 | 23 | 12,5 | 2 |
7254119 | 32 | 70 | 140 | 32 | 29 | 16 | 2 |
7254120 | 32 | 90 | 220 | 32 | 29 | 16 | 2 |
