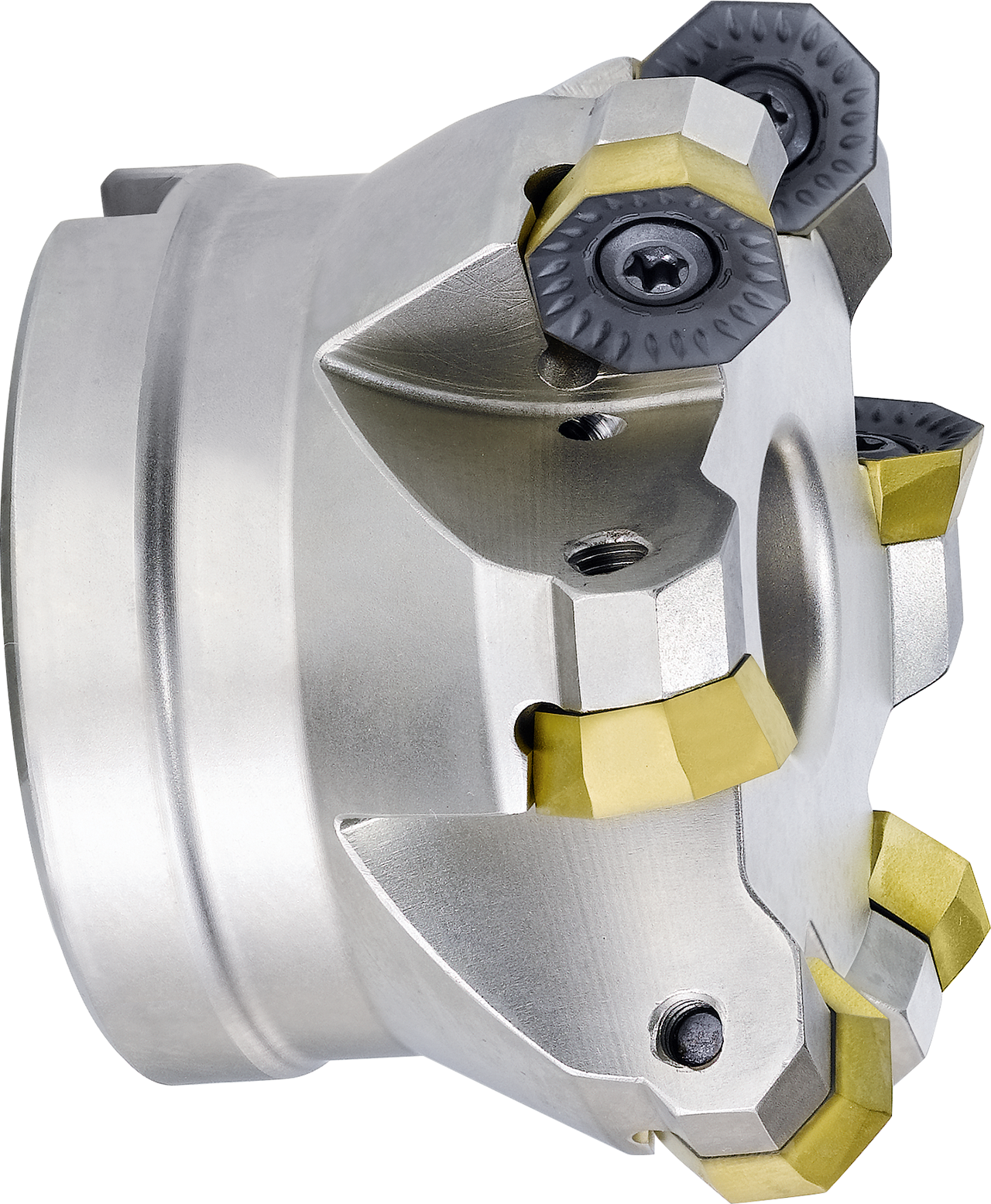

MultiEdge 45° Universal (Aufsteckausführung)
FCT45 O05.042AN-I
: 1041007

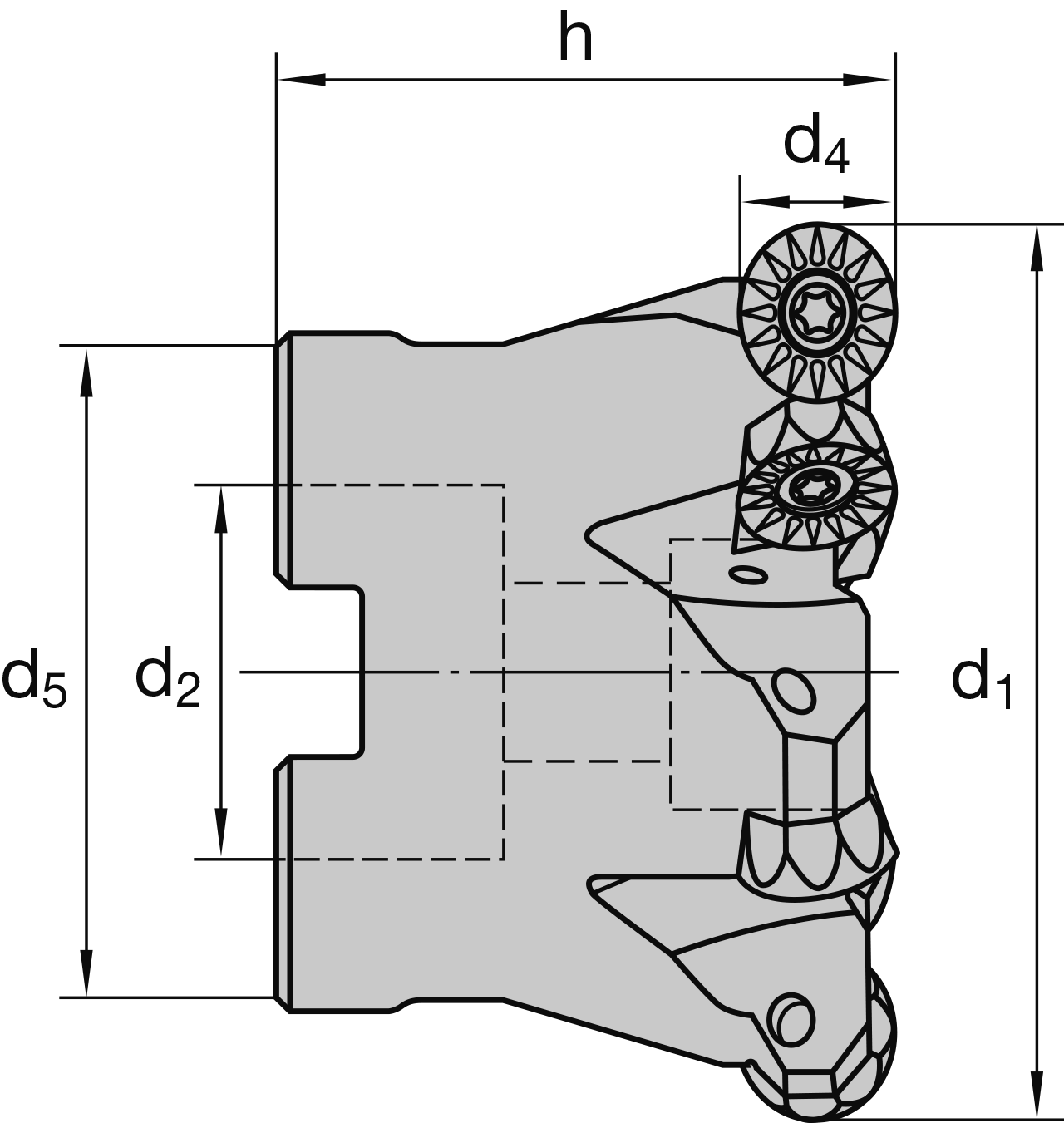

(A1) | (A2) | (B5) | (C3) | (A4) | (F21) | (B2) | |
|---|---|---|---|---|---|---|---|
1041007 | 30 | 42 | 40 | 16 | 32 | 4 | 6 |
1041011 | 36 | 52 | 40 | 22 | 40 | 4 | 8 |
1041008 | 40 | 52 | 40 | 22 | 40 | 5 | 6 |
1041012 | 50 | 66 | 50 | 27 | 50 | 5 | 8 |
1041009 | 54 | 66 | 50 | 27 | 50 | 6 | 6 |
1041013 | 64 | 80 | 50 | 27 | 60 | 6 | 8 |
1041010 | 68 | 80 | 50 | 27 | 60 | 7 | 6 |
1041014 | 84 | 100 | 50 | 32 | 75 | 7 | 8 |
1041015 | 109 | 125 | 63 | 40 | 90 | 8 | 8 |
4053555 | 144 | 160 | 63 | 40 | 130 | 9 | 8 |
