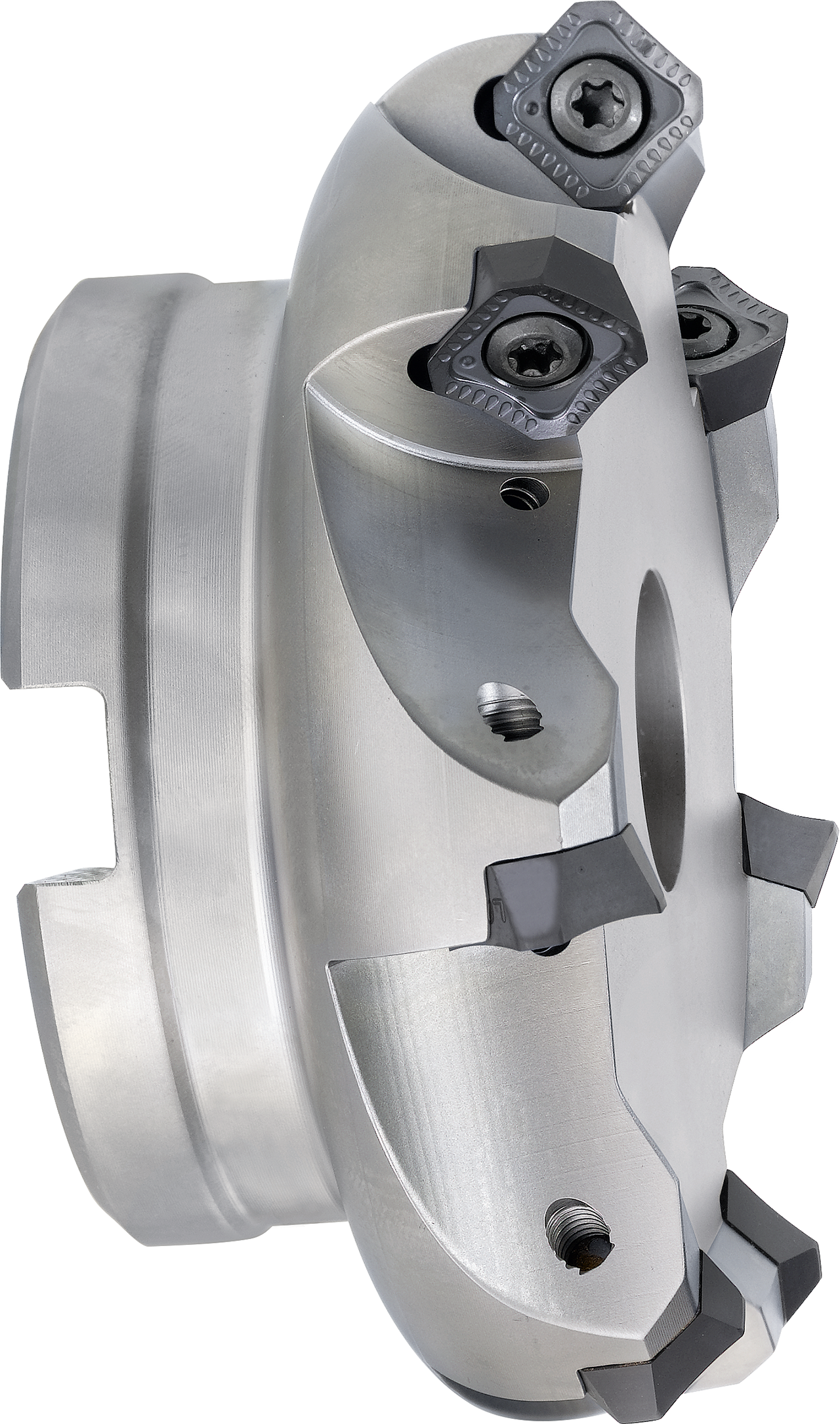

MultiEdge VA 45° (Aufsteckausführung)
FMV45 S10.032AN-I
: 9198571

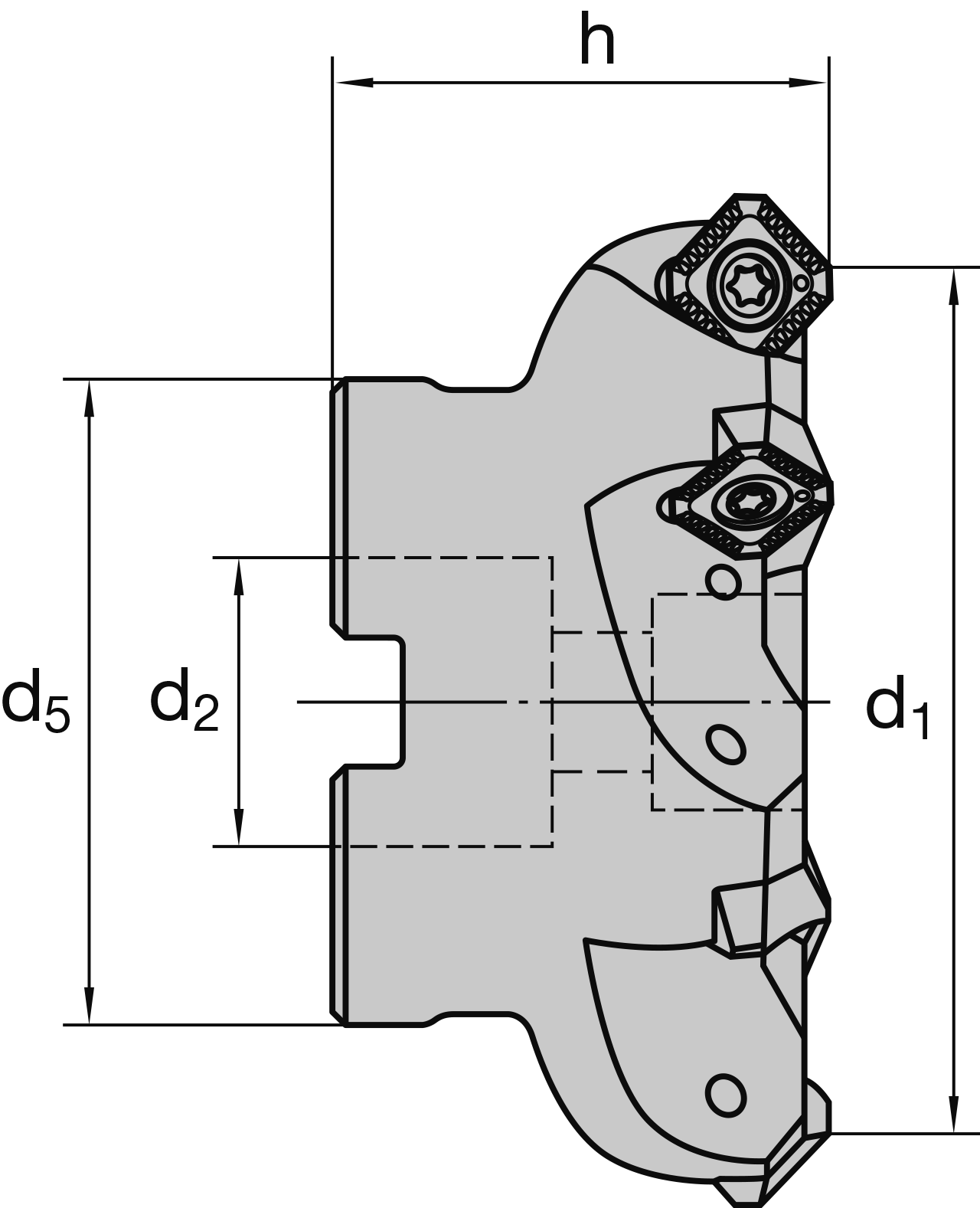

(A1) | (A2) | (B5) | (C3) | (A4) | (F21) | (B2) | |
|---|---|---|---|---|---|---|---|
9198571 | 32 | 42,3 | 40 | 16 | 32 | 4 | 4 |
9198572 | 40 | 50,3 | 40 | 22 | 40 | 5 | 4 |
9198573 | 50 | 60,3 | 40 | 22 | 40 | 6 | 4 |
9198575 | 50 | 63 | 40 | 22 | 40 | 4 | 6 |
9198574 | 63 | 73,3 | 40 | 22 | 50 | 7 | 4 |
9198576 | 63 | 76 | 40 | 22 | 50 | 5 | 6 |
9198577 | 80 | 93 | 50 | 27 | 60 | 6 | 6 |
9198578 | 100 | 113 | 50 | 32 | 75 | 7 | 6 |
9198579 | 125 | 138 | 63 | 40 | 90 | 8 | 6 |
9198582 | 160 | 173 | 63 | 40 | 130 | 9 | 6 |
