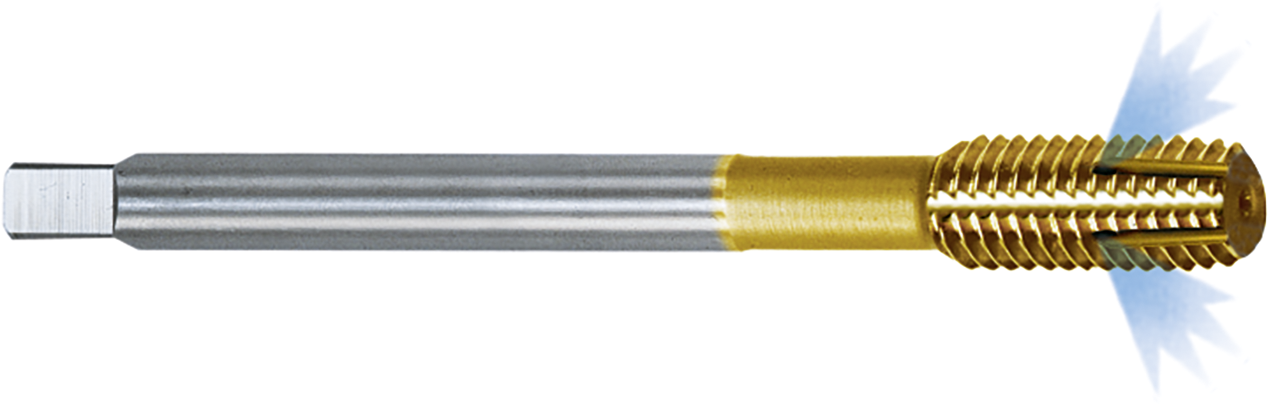

Gewindeformer IKR_M (Form E)
GWF.EM 10 X1,5 -6766 IK-radial
: 9128587
P
M
N

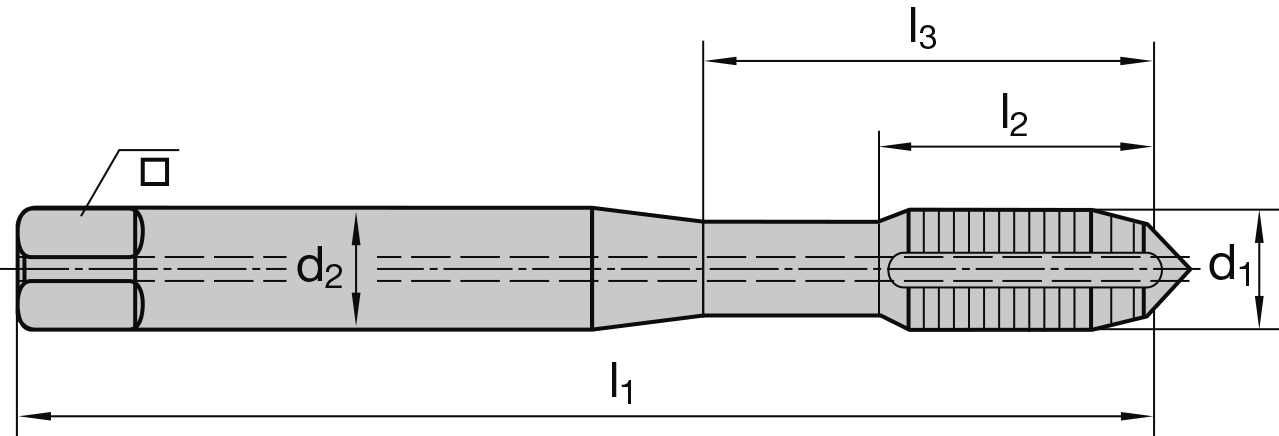

(A25) | (A1) | (A21) | (A3) | (B3) | (B1) | (D1) | |
|---|---|---|---|---|---|---|---|
9128587 | M10x1,5-6HX | M | 10 | 1,5 | 100 | 15 | 5 |
9128588 | M12x1,75-6HX | M | 12 | 1,75 | 110 | 18 | 5 |
9128583 | M5x0,8-6HX | M | 5 | 0,8 | 70 | 15 | 4 |
9128584 | M6x1-6HX | M | 6 | 1 | 80 | 10 | 4 |
9128585 | M8x1,25-6HX | M | 8 | 1,25 | 90 | 13 | 5 |
