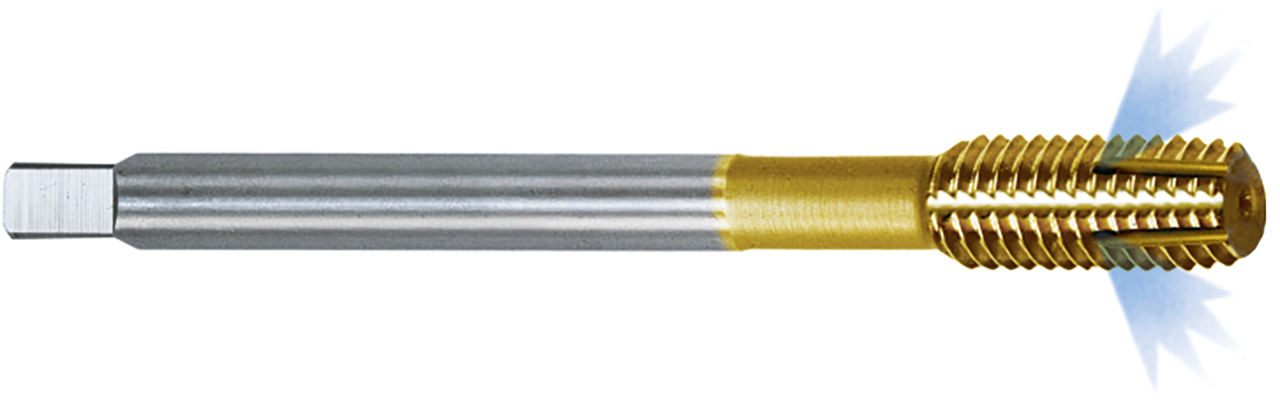

Gewindeformer IKR_M (Form C)
GWF. CM 10 X1,5 -6HX -IKR
: 9128566
P
M
N

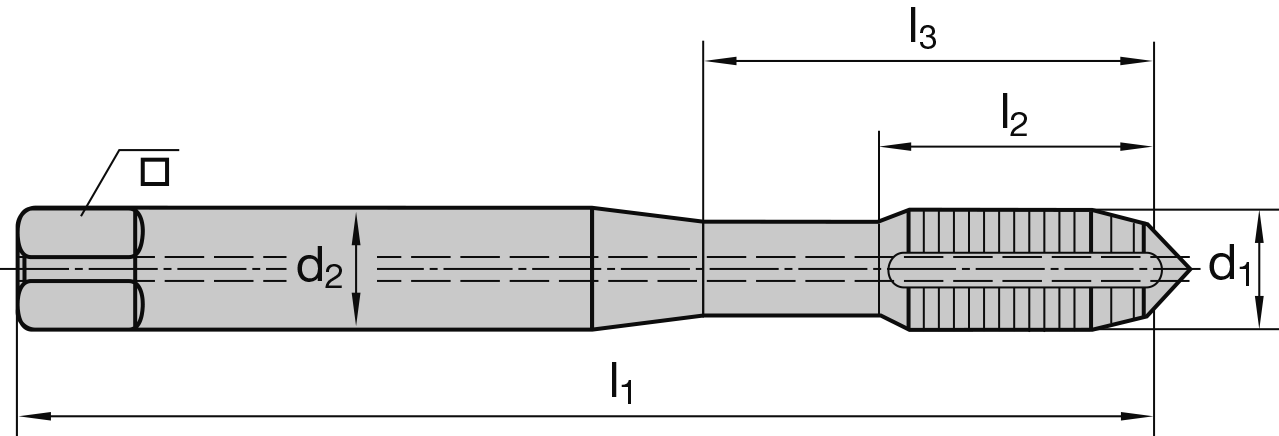

(A25) | (A1) | (A21) | (A3) | (B3) | (B1) | (D1) | |
|---|---|---|---|---|---|---|---|
9128566 | M10x1,5-6HX | M | 10 | 1,5 | 100 | 20 | 5 |
9128567 | M12x1,75-6HX | M | 12 | 1,75 | 110 | 24 | 5 |
9128568 | M14x2-6HX | M | 14 | 2 | 110 | 26 | 6 |
9128569 | M16x2-6HX | M | 16 | 2 | 110 | 28 | 6 |
9128562 | M5x0,8-6HX | M | 5 | 0,8 | 70 | 15 | 4 |
9128563 | M6x1-6HX | M | 6 | 1 | 80 | 16 | 4 |
9128565 | M8x1,25-6HX | M | 8 | 1,25 | 90 | 18 | 5 |
