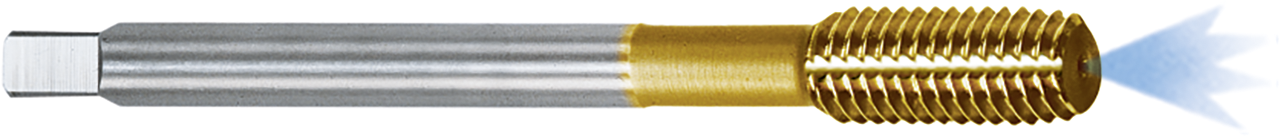

Gewindeformer IKZ_M (Form C)
GWF. CM 10 X1,5 -6GX -IKZ
: 9128577
P
M
N

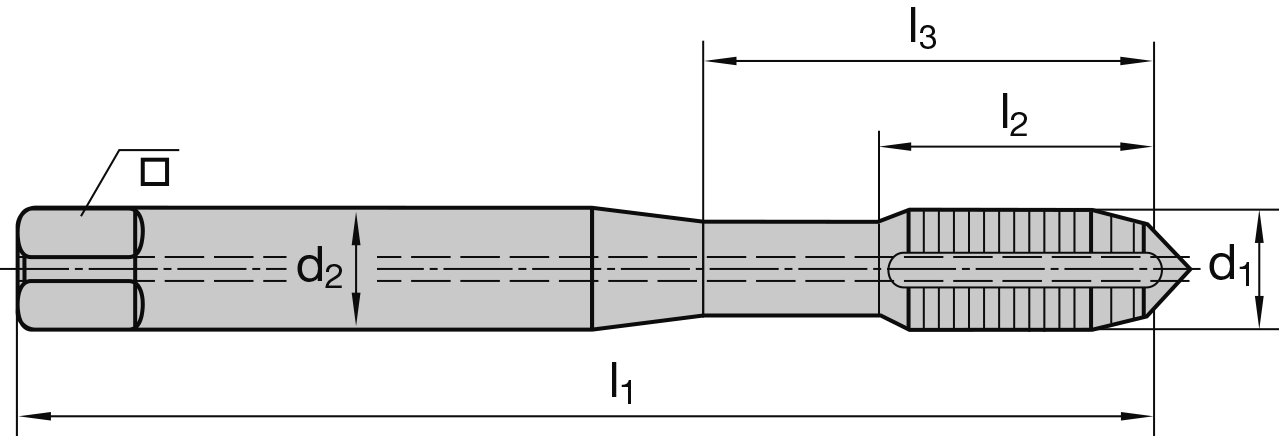

(A25) | (A1) | (A21) | (A3) | (B3) | (B1) | (D1) | |
|---|---|---|---|---|---|---|---|
9128577 | M10x1,5-6GX | M | 10 | 1,5 | 100 | 20 | 5 |
9128573 | M5x0,8-6GX | M | 5 | 0,8 | 70 | 15 | 4 |
9128574 | M6x1-6GX | M | 6 | 1 | 80 | 16 | 4 |
9128575 | M8x1,25-6GX | M | 8 | 1,25 | 90 | 18 | 5 |
GWF. CM 10 X1,5 -6GX -IKZ
: 9128577
P
M
N
(A25) | (A1) | (A21) | (A3) | (B3) | (B1) | (D1) | |
|---|---|---|---|---|---|---|---|
9128577 | M10x1,5-6GX | M | 10 | 1,5 | 100 | 20 | 5 |
9128573 | M5x0,8-6GX | M | 5 | 0,8 | 70 | 15 | 4 |
9128574 | M6x1-6GX | M | 6 | 1 | 80 | 16 | 4 |
9128575 | M8x1,25-6GX | M | 8 | 1,25 | 90 | 18 | 5 |
