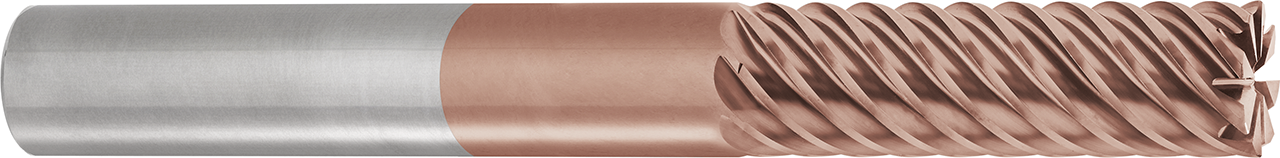

HSC01 Finisher 50 H (Corner Radius)
EM-HSC01 H6.0x20/20 6R1.0HA
: 7440222







H

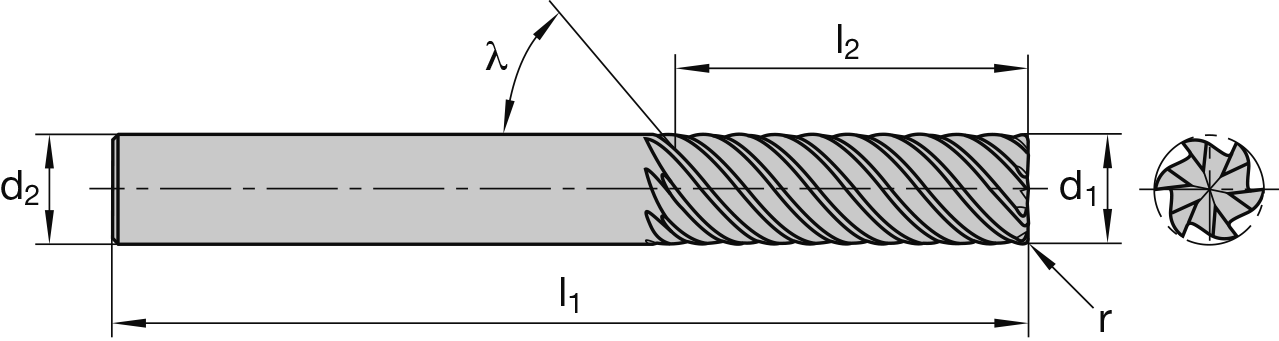

(A1) | (A5) | (B2) | (B5) | (B4) | (F22) | (G1) | |
|---|---|---|---|---|---|---|---|
7440217 | 4 | 4 | 14 | 57 | 14 | 4 | 0,5 |
7440218 | 4 | 4 | 14 | 57 | 14 | 4 | 1 |
7440219 | 5 | 5 | 17 | 65 | 17 | 4 | 0,5 |
7440220 | 5 | 5 | 17 | 65 | 17 | 4 | 1 |
7440221 | 6 | 6 | 20 | 65 | 20 | 6 | 0,5 |
7440222 | 6 | 6 | 20 | 65 | 20 | 6 | 1 |
7440223 | 8 | 8 | 26 | 75 | 26 | 6 | 0,5 |
7440224 | 8 | 8 | 26 | 75 | 26 | 6 | 1 |
7440225 | 8 | 8 | 26 | 75 | 26 | 6 | 2 |
7440226 | 10 | 10 | 32 | 90 | 32 | 6 | 0,5 |
7440227 | 10 | 10 | 32 | 90 | 32 | 6 | 1 |
7440228 | 10 | 10 | 32 | 90 | 32 | 6 | 2 |
7440229 | 12 | 12 | 38 | 100 | 38 | 8 | 0,5 |
7440230 | 12 | 12 | 38 | 100 | 38 | 8 | 1 |
7440231 | 12 | 12 | 38 | 100 | 38 | 8 | 2 |
7440232 | 16 | 16 | 50 | 120 | 50 | 8 | 0,5 |
7440233 | 16 | 16 | 50 | 120 | 50 | 8 | 1 |
7440234 | 16 | 16 | 50 | 120 | 50 | 8 | 2 |
7440235 | 20 | 20 | 62 | 135 | 62 | 8 | 0,5 |
7440236 | 20 | 20 | 62 | 135 | 62 | 8 | 1 |
7440237 | 20 | 20 | 62 | 135 | 62 | 8 | 2 |
