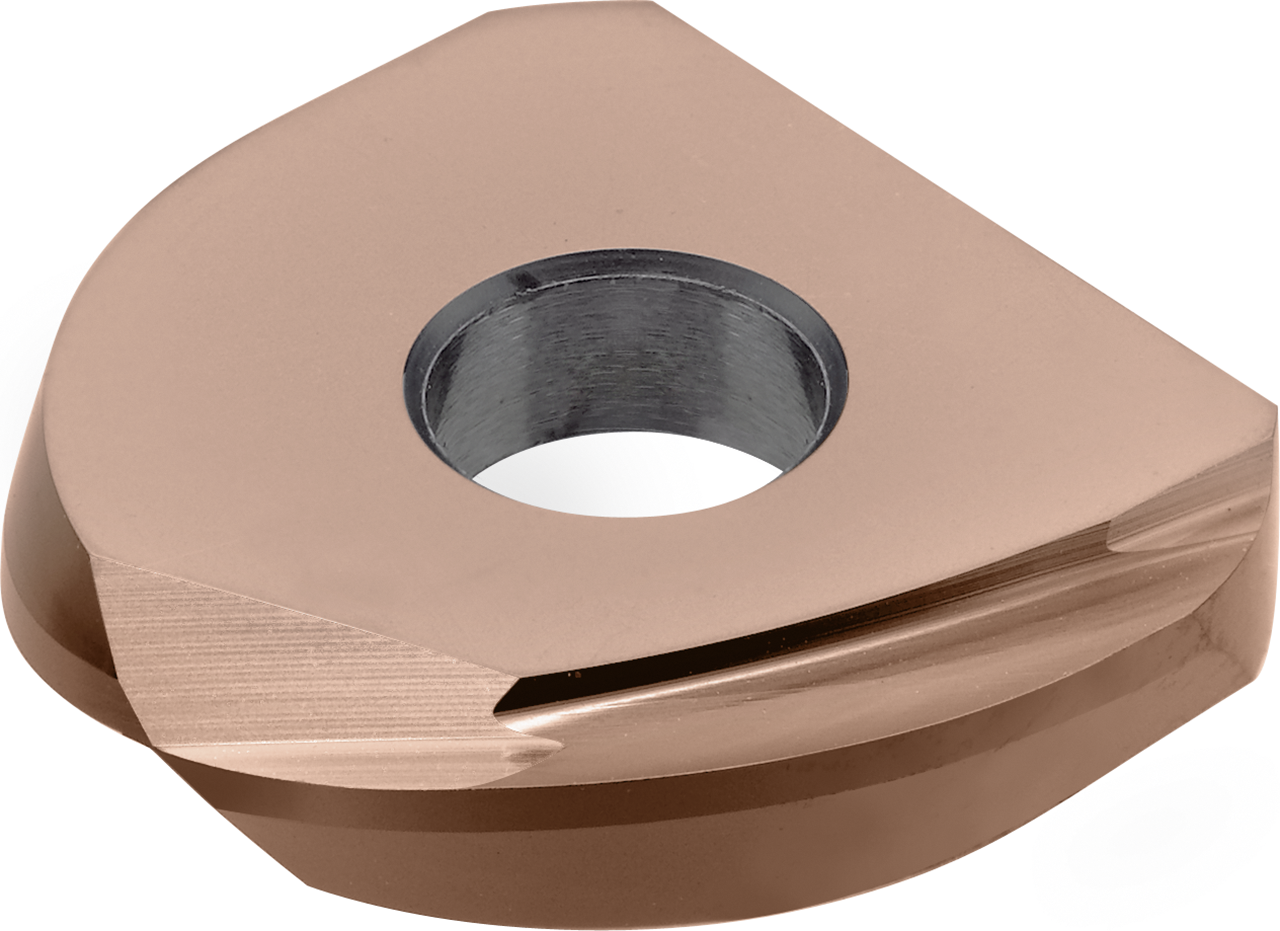

Inserts for Copy Milling (WPR-D)
WPR 06 D LCKP10M
: 7108973
P
K
7108973 | WPR 06 D | LCPK10M | 1,6 | 6 | 1,6 | 2,5 | 1 |
7214281 | WPR 06 D | LCPK15M | 1,6 | 6 | 1,6 | 2,5 | 1 |
7108873 | WPR 08 D | LCPK10M | 2 | 8 | 2 | 3 | 1 |
7108874 | WPR 08 D | LCH33M | 2 | 8 | 2 | 3 | 1 |
7214282 | WPR 08 D | LCPK15M | 2 | 8 | 2 | 3 | 1 |
7108902 | WPR 10 D | LCPK10M | 2,5 | 10 | 2,5 | 4 | 1 |
7108904 | WPR 10 D | LCH33M | 2,5 | 10 | 2,5 | 4 | 1 |
7214284 | WPR 10 D | LCPK15M | 2,5 | 10 | 2,5 | 4 | 1 |
7108961 | WPR 12 D | LCPK10M | 2,5 | 12 | 2,5 | 5 | 1 |
7108963 | WPR 12 D | LCH33M | 2,5 | 12 | 2,5 | 5 | 1 |
7214285 | WPR 12 D | LCPK15M | 2,5 | 12 | 2,5 | 5 | 1 |
7108845 | WPR 16 D | LCPK10M | 3 | 16 | 3 | 5 | 1 |
7108846 | WPR 16 D | LCH33M | 3 | 16 | 3 | 5 | 1 |
7214286 | WPR 16 D | LCPK15M | 3 | 16 | 3 | 5 | 1 |
7108848 | WPR 20 D | LCPK10M | 3 | 20 | 3 | 5 | 1 |
7108849 | WPR 20 D | LCH33M | 3 | 20 | 3 | 5 | 1 |
7214287 | WPR 20 D | LCPK15M | 3 | 20 | 3 | 5 | 1 |
7108854 | WPR 25 D | LCPK10M | 4 | 25 | 4 | 6 | 1 |
7108855 | WPR 25 D | LCH33M | 4 | 25 | 4 | 6 | 1 |
7214288 | WPR 25 D | LCPK15M | 4 | 25 | 4 | 6 | 1 |
7108861 | WPR 32 D | LCPK10M | 5 | 32 | 5 | 8 | 1 |
7108862 | WPR 32 D | LCH33M | 5 | 32 | 5 | 8 | 1 |
7214289 | WPR 32 D | LCPK15M | 5 | 32 | 5 | 8 | 1 |
