EASYTap Through Hole (Type EGM)
TC-BEGM 11,949X1,5-6HX
: 7465495
P
K
M
N

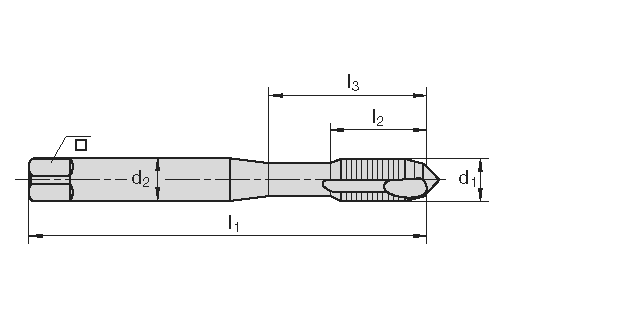

(A25) | (A1) | (A21) | (A3) | (B3) | (B1) | (D1) | |
|---|---|---|---|---|---|---|---|
7465495 | EG-M1x1,5-6HX | EG-M | 11,949 | 1,5 | 100 | 29 | 3 |
7465496 | EG-M1x1,75-6HX | EG-M | 14,273 | 1,75 | 110 | 30 | 3 |
7465497 | EG-M1x2-6HX | EG-M | 18,598 | 2 | 125 | 34 | 3 |
7465489 | EG-M2,5x0,45-6HX | EG-M | 3,085 | 0,45 | 56 | 11 | 3 |
7465488 | EG-M2x0,4-6HX | EG-M | 2,52 | 0,4 | 50 | 9 | 2 |
7465498 | EG-M2x2,5-6HX | EG-M | 23,248 | 2,5 | 160 | 34 | 3 |
7465490 | EG-M3x0,5-6HX | EG-M | 3,65 | 0,5 | 63 | 13 | 3 |
7465491 | EG-M4x0,7-6HX | EG-M | 4,909 | 0,7 | 70 | 16 | 3 |
7465492 | EG-M5x0,8-6HX | EG-M | 6,039 | 0,8 | 80 | 19 | 3 |
7465493 | EG-M6x1-6HX | EG-M | 7,299 | 1 | 90 | 22 | 3 |
7465494 | EG-M8x1,25-6HX | EG-M | 9,624 | 1,25 | 100 | 24 | 3 |
