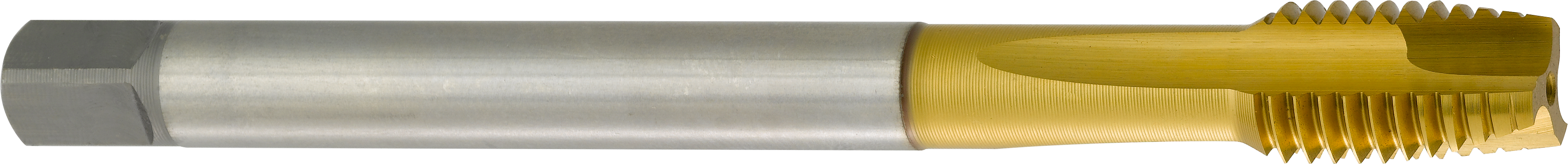

EASYTap Through Hole (Type M-6H+0.1)
TC-BM 12X1,75-6H+0.1-ET0-11
: 7465259
P
K
M
N

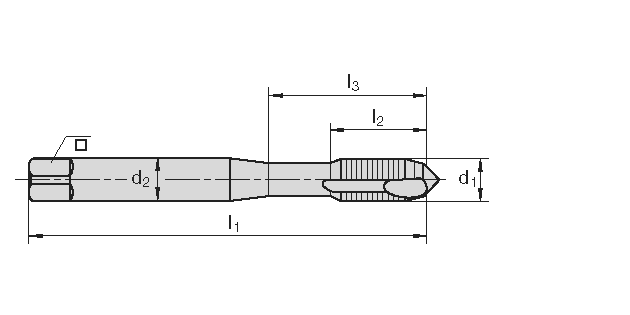

(A25) | (A1) | (A21) | (A3) | (B3) | (B1) | (D1) | |
|---|---|---|---|---|---|---|---|
7465258 | M10x1,5-6H+0.1 | M | 10 | 1,5 | 100 | 24 | 3 |
7465259 | M12x1,75-6H+0.1 | M | 12 | 1,75 | 110 | 28 | 3 |
7465260 | M16x2-6H+0.1 | M | 16 | 2 | 110 | 32 | 3 |
7491484 | M2x0,4-6H+0.1 | M | 2 | 0,4 | 45 | 8 | 2 |
7465253 | M3x0,5-6H+0.1 | M | 3 | 0,5 | 56 | 11 | 3 |
7465254 | M4x0,7-6H+0.1 | M | 4 | 0,7 | 63 | 13 | 3 |
7465255 | M5x0,8-6H+0.1 | M | 5 | 0,8 | 70 | 16 | 3 |
7465256 | M6x1-6H+0.1 | M | 6 | 1 | 80 | 19 | 3 |
7465257 | M8x1,25-6H+0.1 | M | 8 | 1,25 | 90 | 22 | 3 |
