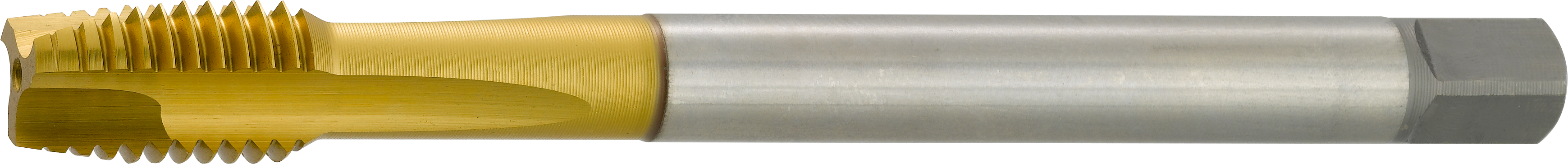

EASYTap Through Hole (Type MF-6HX) LH
TC-BMF 12X1,5-6HX-ET0-11-A
: 7465435
P
K
M
N
(A25) | (A1) | (A21) | (A3) | (B3) | (B1) | (D1) | |
|---|---|---|---|---|---|---|---|
7465433 | M10x1,25-6HX | MF | 10 | 1,25 | 100 | 24 | 3 |
7465432 | M10x1-6HX | MF | 10 | 1 | 90 | 20 | 3 |
7465434 | M12x1,25-6HX | MF | 12 | 1,25 | 100 | 22 | 3 |
7465435 | M12x1,5-6HX | MF | 12 | 1,5 | 100 | 22 | 3 |
7465436 | M16x1,5-6HX | MF | 16 | 1,5 | 100 | 22 | 3 |
7465437 | M20x1,5-6HX | MF | 20 | 1,5 | 125 | 25 | 3 |
7465438 | M24x1,5-6HX | MF | 24 | 1,5 | 140 | 28 | 3 |
7465431 | M8x1-6HX | MF | 8 | 1 | 90 | 22 | 3 |
