EASYTap Blind Hole (Type M-6GX)
TC-CM 4X0,7-6GX-ET45-11
: 7465337
P
K
M
N

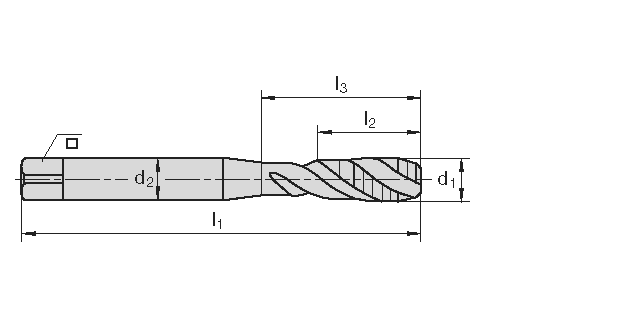

(A25) | (A1) | (A21) | (A3) | (B3) | (B1) | (D1) | |
|---|---|---|---|---|---|---|---|
7465341 | M10x1,5-6GX | M | 10 | 1,5 | 100 | 12 | 3 |
7465342 | M12x1,75-6GX | M | 12 | 1,75 | 110 | 14 | 3 |
7465343 | M14x2-6GX | M | 14 | 2 | 110 | 16 | 3 |
7465344 | M16x2-6GX | M | 16 | 2 | 110 | 16 | 3 |
7465345 | M20x2,5-6GX | M | 20 | 2,5 | 140 | 25 | 4 |
7465346 | M24x3-6GX | M | 24 | 3 | 160 | 30 | 4 |
7465335 | M2x0,4-6GX | M | 2 | 0,4 | 45 | 2 | |
7465336 | M3x0,5-6GX | M | 3 | 0,5 | 56 | 4 | 3 |
7465337 | M4x0,7-6GX | M | 4 | 0,7 | 63 | 5,6 | 3 |
7465338 | M5x0,8-6GX | M | 5 | 0,8 | 70 | 6,4 | 3 |
7465339 | M6x1-6GX | M | 6 | 1 | 80 | 8 | 3 |
7465340 | M8x1,25-6GX | M | 8 | 1,25 | 90 | 10 | 3 |
