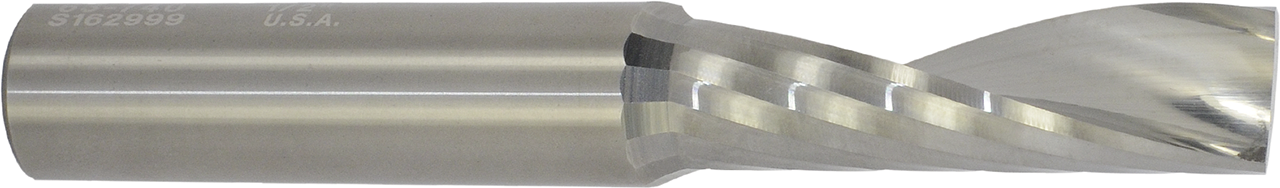

63-700 Single Flute - Solid Carbide Upcut Spiral O Flute
63-713 SFR Vollhartmetall 0,125x0,5i 1Z
: 2601086

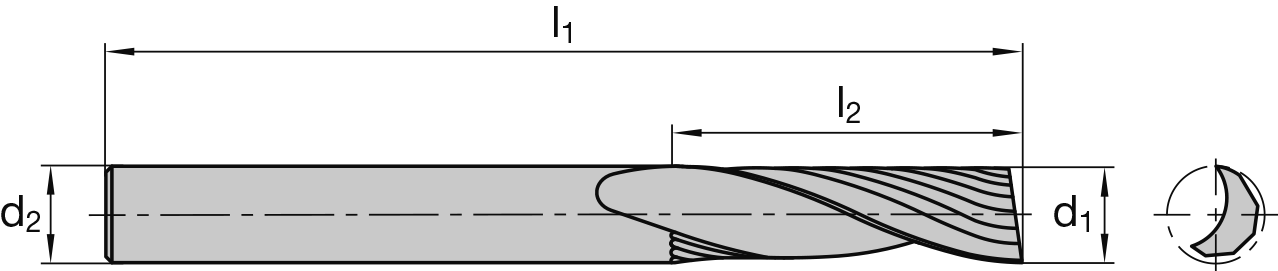

(J22A) | (A1) | (B2) | (B5) | (C3) | (F21) | |
|---|---|---|---|---|---|---|
2601080 | 63-700 | 1,5875 | 6,35 | 50,8 | 6,35 | 1 |
2601081 | 63-701* | 1,5875 | 6,35 | 50,8 | 3,175 | 1 |
2601082 | 63-706 | 3,175 | 15,875 | 63,5 | 6,35 | 1 |
2601083 | 63-707 | 3,175 | 19,05 | 63,5 | 6,35 | 1 |
2601084 | 63-710 | 3,175 | 6,35 | 50,8 | 6,35 | 1 |
2601085 | 63-711 | 3,175 | 6,35 | 50,8 | 3,175 | 1 |
2601086 | 63-713 | 3,175 | 12,7 | 50,8 | 3,175 | 1 |
2601087 | 63-715 | 3,96748 | 14,2875 | 50,8 | 6,35 | 1 |
2601088 | 63-716 | 4,7625 | 9,525 | 50,8 | 4,7625 | 1 |
2601089 | 63-717 | 4,7625 | 9,525 | 50,8 | 6,35 | 1 |
2601090 | 63-718 | 4,7625 | 15,875 | 50,8 | 6,35 | 1 |
2601091 | 63-719 | 4,7625 | 15,875 | 50,8 | 4,7625 | 1 |
2601092 | 63-720 | 5,55752 | 19,05 | 63,5 | 6,35 | 1 |
2601093 | 63-724 | 6,35 | 9,525 | 50,8 | 6,35 | 1 |
2601094 | 63-725 | 6,35 | 19,05 | 63,5 | 6,35 | 1 |
2601095 | 63-726 | 6,35 | 31,75 | 76,2 | 6,35 | 1 |
2601096 | 63-727 | 6,35 | 38,1 | 76,2 | 6,35 | 1 |
2601097 | 63-730 | 9,525 | 15,875 | 63,5 | 9,525 | 1 |
2601098 | 63-731 | 9,525 | 19,05 | 76,2 | 9,525 | 1 |
2601099 | 63-733 | 9,525 | 28,575 | 76,2 | 9,525 | 1 |
2601100 | 63-735 | 9,525 | 41,275 | 88,9 | 9,525 | 1 |
2601101 | 63-740 | 12,7 | 41,275 | 88,9 | 12,7 | 1 |
2601102 | 63-744 | 6,35 | 19,05 | 63,5 | 6,35 | 1 |
2601103 | 63-745 | 9,525 | 41,275 | 88,9 | 9,525 | 1 |
2601104 | 63-746 | 12,7 | 41,275 | 88,9 | 12,7 | 1 |
6601807 | 63-712 | 3,175 | 12,7 | 50,8 | 6,35 | 1 |
9111005 | 63-743 | 3,175 | 12,7 | 50,8 | 6,35 | 1 |
