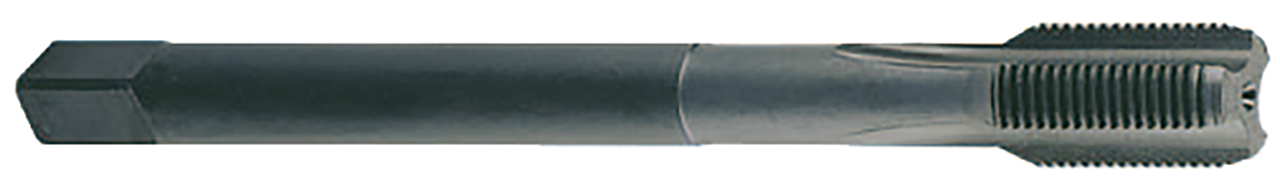

Machine Tap Nit (Type M)
MGB. CM 22 X2,5 -6322
: 1387914
K
N
1387877 | M10x1,5-6HX | 10 | 1,5 | 100 | 20 | 4 |
1387879 | M12x1,75-6HX | 12 | 1,75 | 110 | 24 | 4 |
1387888 | M14x2-6HX | 14 | 2 | 110 | 26 | 4 |
1387897 | M16x2-6HX | 16 | 2 | 110 | 28 | 3 |
1387898 | M18x2,5-6HX | 18 | 2,5 | 125 | 28 | 4 |
1387914 | M22x2,5-6HX | 22 | 2,5 | 140 | 32 | 4 |
1387915 | M24x3-6HX | 24 | 3 | 160 | 36 | 5 |
1387916 | M27x3-6HX | 27 | 3 | 160 | 36 | 5 |
1387917 | M30x3,5-6HX | 30 | 3,5 | 180 | 40 | 5 |
1387871 | M6x1-6HX | 6 | 1 | 80 | 16 | 3 |
1387873 | M7x1-6HX | 7 | 1 | 80 | 17 | 4 |
1387875 | M8x1,25-6HX | 8 | 1,25 | 90 | 18 | 4 |
