EASYTap Blind Hole (Type M-6HX) LH
TC-CM 5X0,8-6HX-ET45-11-A
: 7465381
P
K
M
N

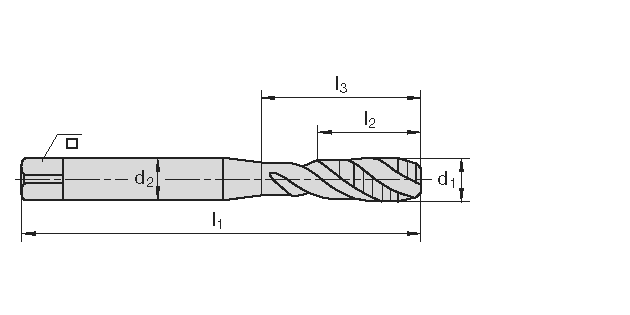

(A25) | (A1) | (A21) | (A3) | (B3) | (B1) | (D1) | |
|---|---|---|---|---|---|---|---|
7465384 | M10x1,5-6HX | M | 10 | 1,5 | 100 | 12 | 3 |
7465385 | M12x1,75-6HX | M | 12 | 1,75 | 110 | 14 | 3 |
7465386 | M14x2-6HX | M | 14 | 2 | 110 | 16 | 3 |
7465387 | M16x2-6HX | M | 16 | 2 | 110 | 16 | 3 |
7465388 | M20x2,5-6HX | M | 20 | 2,5 | 140 | 25 | 4 |
7465389 | M24x3-6HX | M | 24 | 3 | 160 | 30 | 4 |
7465379 | M3x0,5-6HX | M | 3 | 0,5 | 56 | 4 | 3 |
7465380 | M4x0,7-6HX | M | 4 | 0,7 | 63 | 5,6 | 3 |
7465381 | M5x0,8-6HX | M | 5 | 0,8 | 70 | 6,4 | 3 |
7465382 | M6x1-6HX | M | 6 | 1 | 80 | 8 | 3 |
7465383 | M8x1,25-6HX | M | 8 | 1,25 | 90 | 10 | 3 |
