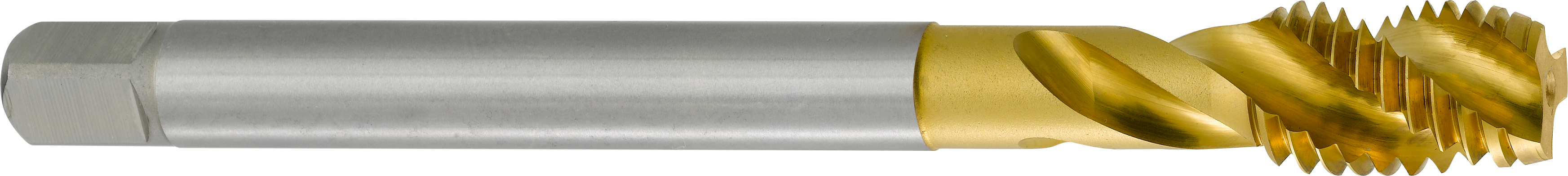

EASYTap Blind Hole (Type G)
TC-CG 1X30-ET45-11
: 7465531
P
K
M
N

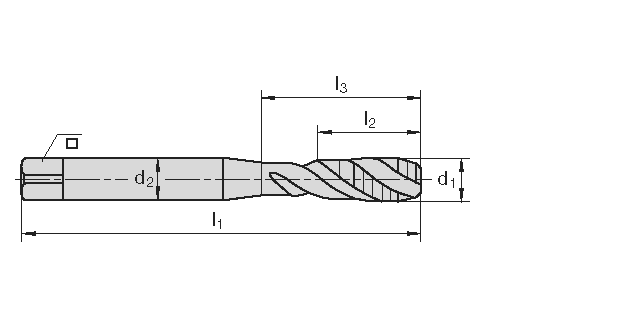

(A25) | (A1) | (A21) | (B3) | (B1) | (D1) | |
|---|---|---|---|---|---|---|
7465524 | G1/16x28 | G | 7,72 | 90 | 9,1 | 3 |
7465528 | G1/2x14 | G | 20,96 | 125 | 18,2 | 4 |
7465526 | G1/4x19 | G | 13,16 | 100 | 13,4 | 3 |
7465525 | G1/8x28 | G | 9,73 | 90 | 9,1 | 3 |
7465531 | G1x11 | G | 33,25 | 160 | 30 | 4 |
7465530 | G3/4x14 | G | 26,44 | 140 | 28 | 4 |
7465527 | G3/8x19 | G | 16,66 | 100 | 13,4 | 4 |
7465529 | G5/8x14 | G | 22,91 | 125 | 18,2 | 4 |
