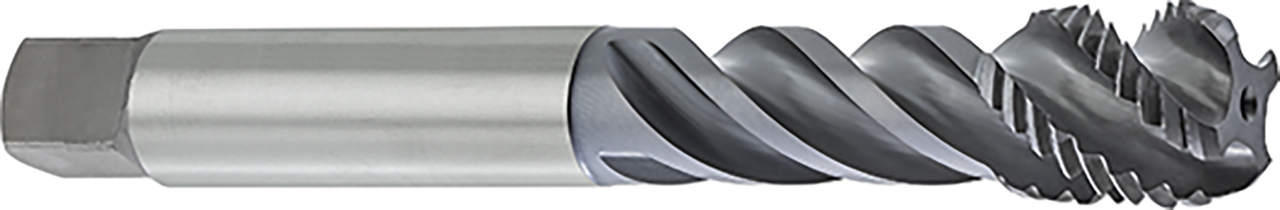

S41

Rasant Steel (Type G)

TC-CG 1/4X19-STE45-10-CD

: 7295869

Thread type

Blind hole thread

corresponds with 45° spiral angle

Chamfer forms

Powder-metallurgical steel

P


7295871	G1/2x14	125	18	4
7295869	G1/4x19	100	14	4
7295868	G1/8x28	90	9	3
7295873	G1x11	160	23	5
7295872	G3/4x14	140	18	4
7295870	G3/8x19	100	14	4
