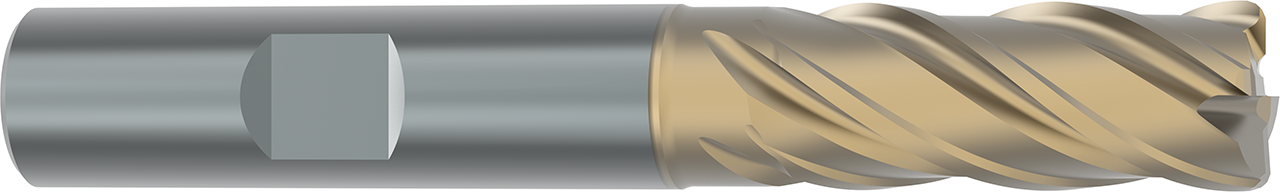

HPC01 Rougher 35/38 H (Weldon Shank)
EM-HPC01 H16.0x35/44 4R0.5HB
: 7429458
P
H

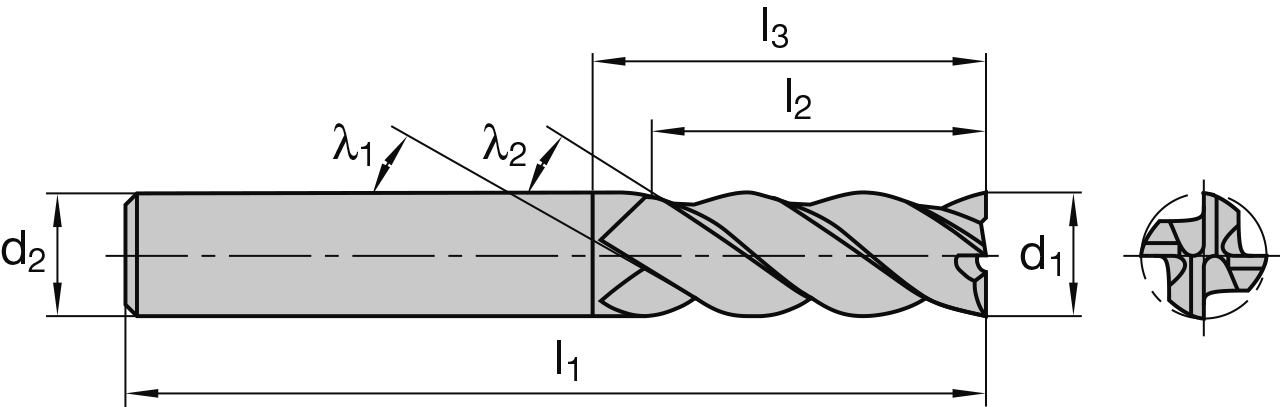

(A1) | (B2) | (B5) | (B4) | (C3) | (F22) | (B9) | |
|---|---|---|---|---|---|---|---|
7429435 | 6 | 7 | 54 | 16 | 6 | 4 | 16 |
7429453 | 6 | 15 | 57 | 21 | 6 | 4 | 21 |
7429436 | 8 | 9 | 58 | 20 | 8 | 4 | 20 |
7429454 | 8 | 20 | 63 | 27 | 8 | 4 | 27 |
7429437 | 10 | 11 | 66 | 24 | 10 | 4 | 24 |
7429455 | 10 | 25 | 72 | 32 | 10 | 4 | 32 |
7429438 | 12 | 12 | 73 | 26 | 12 | 4 | 26 |
7429439 | 12 | 12 | 73 | 26 | 12 | 4 | 26 |
7429456 | 12 | 30 | 83 | 38 | 12 | 4 | 38 |
7429457 | 12 | 30 | 83 | 38 | 12 | 4 | 38 |
7429440 | 16 | 16 | 82 | 32 | 16 | 4 | 32 |
7429441 | 16 | 16 | 82 | 32 | 16 | 4 | 32 |
7429458 | 16 | 35 | 92 | 44 | 16 | 4 | 44 |
7429459 | 16 | 35 | 92 | 44 | 16 | 4 | 44 |
7429442 | 20 | 20 | 92 | 40 | 20 | 4 | 40 |
7429443 | 20 | 20 | 92 | 40 | 20 | 4 | 40 |
7429460 | 20 | 44 | 104 | 54 | 20 | 4 | 54 |
7429461 | 20 | 44 | 104 | 54 | 20 | 4 | 54 |
