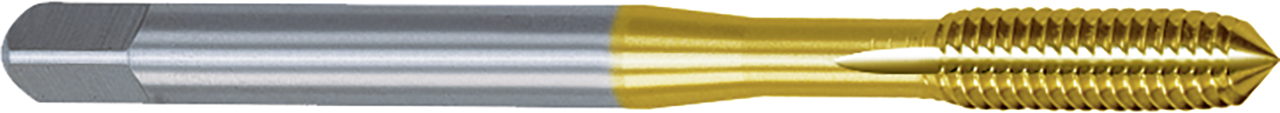

Forming Tap M (S)
GWF. CM 12 X1,75 S-6392C
: 1410731
P
M
N
1410705 | M10x1,5-6HX | M | 10 | 1,5 | 100 | 20 | 5 |
1410731 | M12x1,75-6HX | M | 12 | 1,75 | 110 | 24 | 5 |
1410737 | M16x2-6HX | M | 16 | 2 | 110 | 28 | 6 |
1410695 | M3,5x0,6-6HX | M | 3,5 | 0,6 | 56 | 12 | 3 |
1410693 | M3x0,5-6HX | M | 3 | 0,5 | 56 | 11 | 3 |
1410697 | M4x0,7-6HX | M | 4 | 0,7 | 63 | 13 | 4 |
1410699 | M5x0,8-6HX | M | 5 | 0,8 | 70 | 15 | 4 |
1410701 | M6x1-6HX | M | 6 | 1 | 80 | 16 | 4 |
1410702 | M7x1-6HX | M | 7 | 1 | 80 | 16 | 4 |
1410703 | M8x1,25-6HX | M | 8 | 1,25 | 90 | 18 | 5 |
