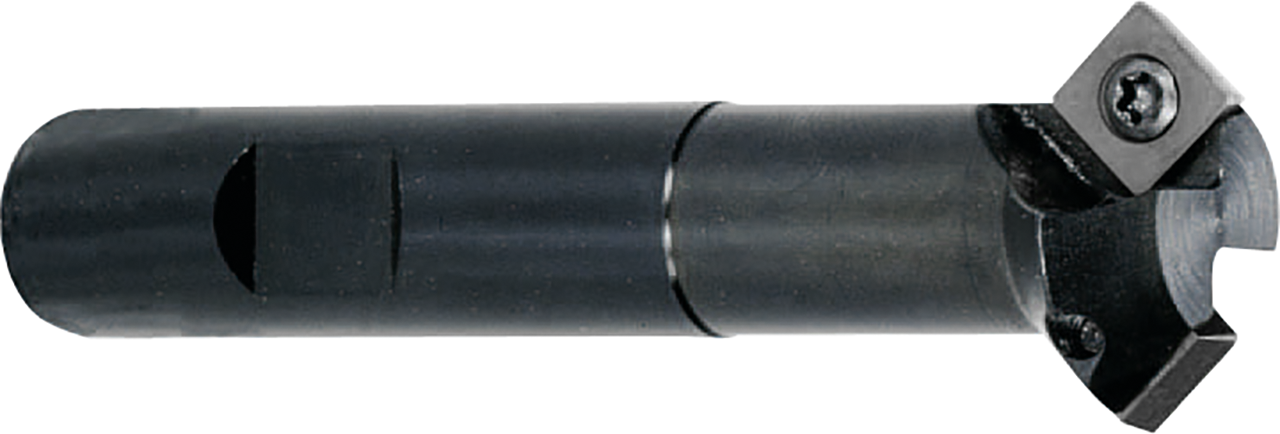

Bevel Mill 45°
EFZ45 S09.016BN (11483)
: 1043604

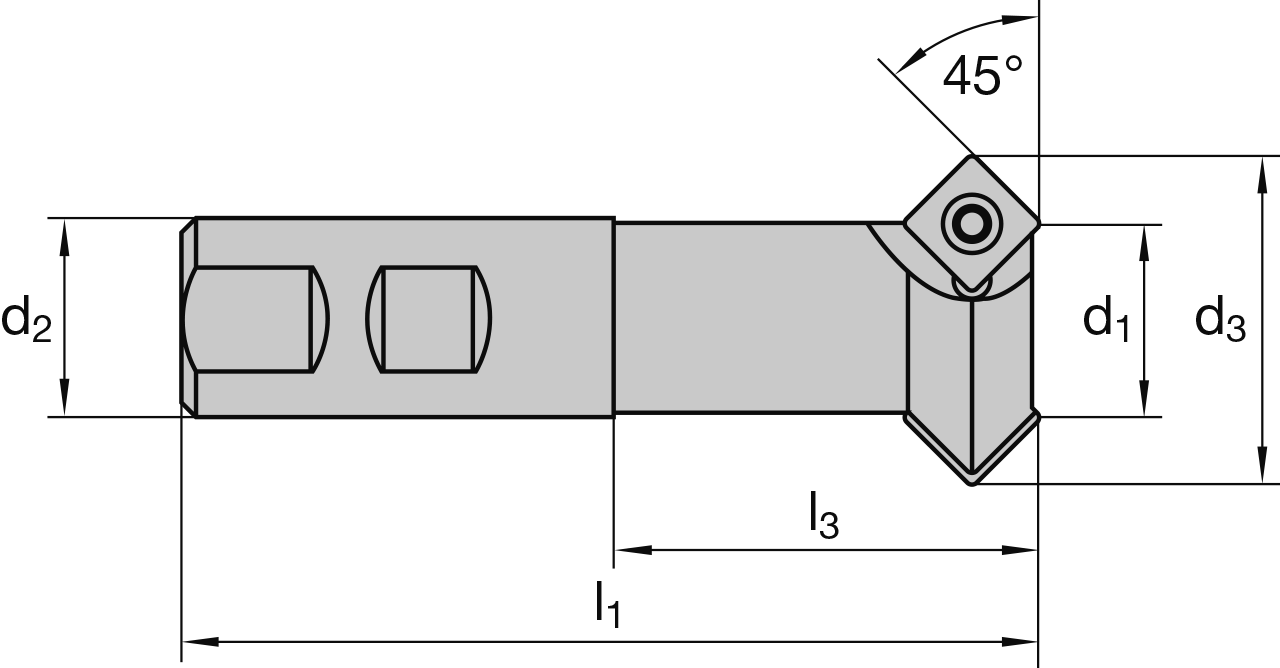

(A1) | (B5) | (B3) | (A2) | (C3) | (E1) | (B2) | (F21) | |
|---|---|---|---|---|---|---|---|---|
1043604 | 16 | 85 | 37 | 28,8 | 16 | 45 | 6 | 2 |
1043606 | 20 | 95 | 45 | 37,1 | 20 | 45 | 8 | 2 |
1043608 | 25 | 110 | 54 | 42,3 | 25 | 45 | 8 | 2 |
1043610 | 32 | 125 | 65 | 49,3 | 32 | 45 | 8 | 3 |
EFZ45 S09.016BN (11483)
: 1043604
(A1) | (B5) | (B3) | (A2) | (C3) | (E1) | (B2) | (F21) | |
|---|---|---|---|---|---|---|---|---|
1043604 | 16 | 85 | 37 | 28,8 | 16 | 45 | 6 | 2 |
1043606 | 20 | 95 | 45 | 37,1 | 20 | 45 | 8 | 2 |
1043608 | 25 | 110 | 54 | 42,3 | 25 | 45 | 8 | 2 |
1043610 | 32 | 125 | 65 | 49,3 | 32 | 45 | 8 | 3 |
