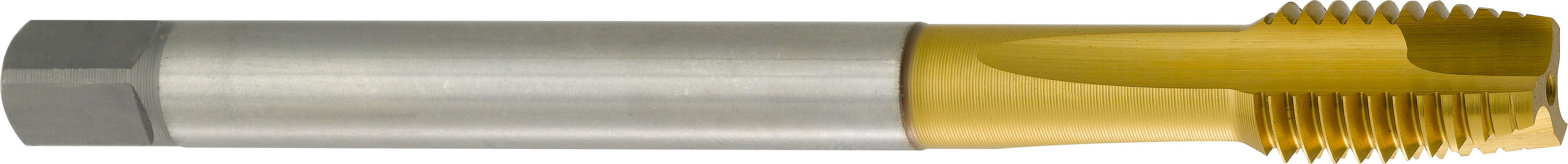

EASYTap Through Hole (Type UNF-2BX)
TC-BUNF 7/8-14X25-ET0-11
: 7465590
P
K
M
N

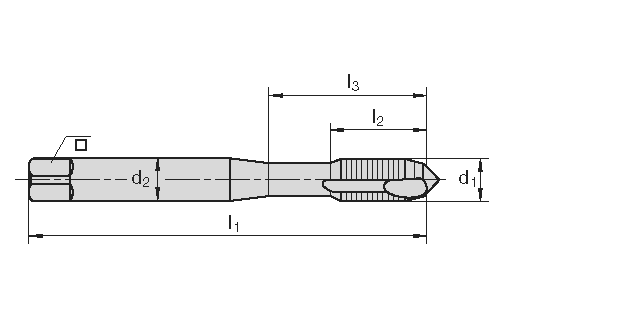

(A25) | (A1) | (A21) | (B3) | (B1) | (D1) | |
|---|---|---|---|---|---|---|
7465581 | #10-32UNF-2B | UNF | 4,826 | 70 | 16 | 3 |
7465575 | #2-64UNF-2B | UNF | 2,184 | 45 | 9 | 2 |
7465576 | #3-56UNF-2B | UNF | 2,515 | 50 | 9 | 2 |
7465577 | #4-48UNF-2B | UNF | 2,845 | 56 | 11 | 2 |
7465578 | #5-44UNF-2B | UNF | 3,175 | 56 | 11 | 3 |
7465579 | #6-40UNF-2B | UNF | 3,505 | 56 | 12 | 3 |
7465580 | #8-36UNF-2B | UNF | 4,166 | 63 | 13 | 3 |
7465582 | 1/4-28UNF-2B | UNF | 6,35 | 80 | 19 | 3 |
7465586 | 1/2-20UNF-2B | UNF | 12,7 | 100 | 22 | 3 |
7465591 | 1-12UNF-2B | UNF | 25,4 | 140 | 28 | 3 |
7465584 | 3/8-24UNF-2B | UNF | 9,525 | 90 | 20 | 3 |
7465589 | 3/4-16UNF-2B | UNF | 19,05 | 110 | 25 | 3 |
7465583 | 5/16-24UNF-2B | UNF | 7,938 | 90 | 22 | 3 |
7465588 | 5/8-18UNF-2B | UNF | 15,875 | 100 | 22 | 3 |
7465585 | 7/16-20UNF-2B | UNF | 11,113 | 100 | 24 | 3 |
7465590 | 7/8-14UNF-2B | UNF | 22,225 | 125 | 25 | 3 |
7465587 | 9/16-18UNF-2B | UNF | 14,288 | 100 | 22 | 3 |
