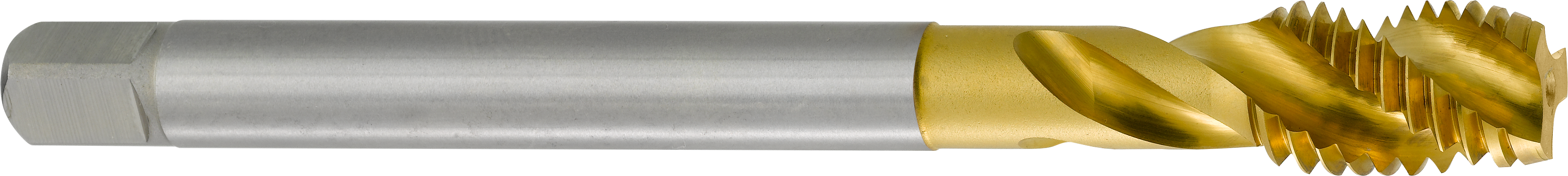

EASYTap Blind Hole (Type NPT)
TC-CNPT 3/4X35-ET40-11
: 7465615
P
K
M
N

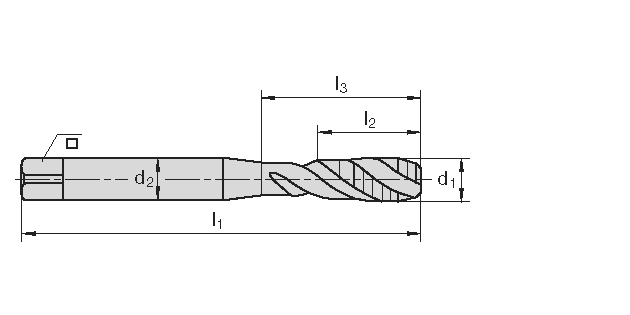

(A25) | (A1) | (A21) | (B3) | (B1) | (D1) | |
|---|---|---|---|---|---|---|
7465616 | 1-11.5NPT | NPT | 33,228 | 160 | 45 | 4 |
7465610 | 1/16-27NPT | NPT | 7,895 | 90 | 18 | 3 |
7465614 | 1/2-14NPT | NPT | 21,223 | 125 | 35 | 4 |
7465612 | 1/4-18NPT | NPT | 13,616 | 100 | 28 | 3 |
7465611 | 1/8-27NPT | NPT | 10,242 | 90 | 19 | 3 |
7465615 | 3/4-14NPT | NPT | 26,568 | 140 | 35 | 4 |
7465613 | 3/8-18NPT | NPT | 17,055 | 100 | 28 | 4 |
