EASYTap Through Hole (Type G)
TC-BG 1/16X20-ET0-11
: 7465510
P
K
M
N

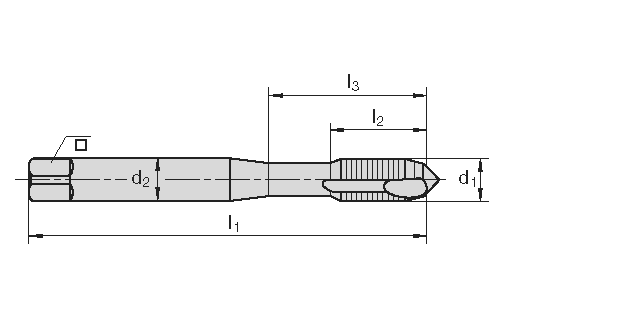

(A25) | (A1) | (A21) | (B3) | (B1) | (D1) | |
|---|---|---|---|---|---|---|
7465510 | G1/16x28 | G | 7,72 | 90 | 20 | 3 |
7465514 | G1/2x14 | G | 20,96 | 125 | 25 | 3 |
7465512 | G1/4x19 | G | 13,16 | 100 | 22 | 3 |
7465511 | G1/8x28 | G | 9,73 | 90 | 20 | 3 |
7465517 | G1x11 | G | 33,25 | 160 | 30 | 4 |
7465516 | G3/4x14 | G | 26,44 | 140 | 28 | 4 |
7465513 | G3/8x19 | G | 16,66 | 100 | 22 | 3 |
7465515 | G5/8x14 | G | 22,91 | 125 | 25 | 3 |
