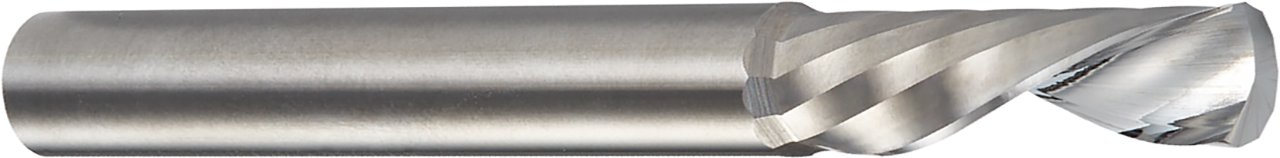

12000 Single flute - Endmills downcut
12010 SFR VHM 1x4mm 1Z
: 2700279
(J22A) | (A1) | (B2) | (B5) | (C3) | (F21) | |
|---|---|---|---|---|---|---|
2700279 | 12010 | 1 | 4 | 30 | 3 | 1 |
2700281 | 12015 | 1,5 | 6 | 30 | 3 | 1 |
2700025 | 12020 | 2 | 8 | 30 | 2 | 1 |
2700282 | 12020B | 2 | 8 | 30 | 3 | 1 |
2701844 | 12020A | 2 | 8 | 60 | 2 | 1 |
7277820 | 12020C | 2 | 8 | 50 | 6 | 1 |
2701846 | 12025A | 2,5 | 8 | 60 | 2,5 | 1 |
2700283 | 12030B | 3 | 10 | 50 | 6 | 1 |
2701847 | 12030A | 3 | 10 | 60 | 3 | 1 |
2703050 | 12030 | 3 | 10 | 30 | 3 | 1 |
2700256 | 12040 | 4 | 12 | 50 | 4 | 1 |
2700284 | 12040C | 4 | 12 | 50 | 6 | 1 |
2701849 | 12040A | 4 | 20 | 60 | 4 | 1 |
2701850 | 12040B | 4 | 30 | 70 | 4 | 1 |
2700257 | 12050 | 5 | 16 | 60 | 5 | 1 |
2700285 | 12050B | 5 | 16 | 50 | 6 | 1 |
2701852 | 12050A | 5 | 30 | 70 | 5 | 1 |
2700258 | 12060 | 6 | 20 | 60 | 6 | 1 |
2701841 | 12060B | 6 | 38 | 80 | 6 | 1 |
2701843 | 12060A | 6 | 30 | 70 | 6 | 1 |
2700259 | 12080 | 8 | 22 | 60 | 8 | 1 |
2701854 | 12080A | 8 | 38 | 80 | 8 | 1 |
2700260 | 12100 | 10 | 30 | 75 | 10 | 1 |
2700261 | 12120 | 12 | 30 | 75 | 12 | 1 |
2701848 | 12317 | 3,175 | 12,7 | 38,1 | 6,35 | 1 |
2701851 | 12476 | 4,7625 | 15,875 | 50,8 | 6,35 | 1 |
2701853 | 12635 | 6,35 | 19,05 | 50,8 | 6,35 | 1 |
