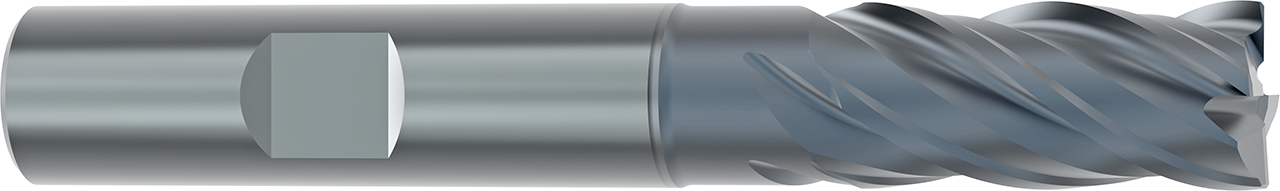

HPC01 Rougher 35/38P (Weldon Shank)
EM-HPC01 P10.0x11/24 4C0.2HB
: 7426044










P
K

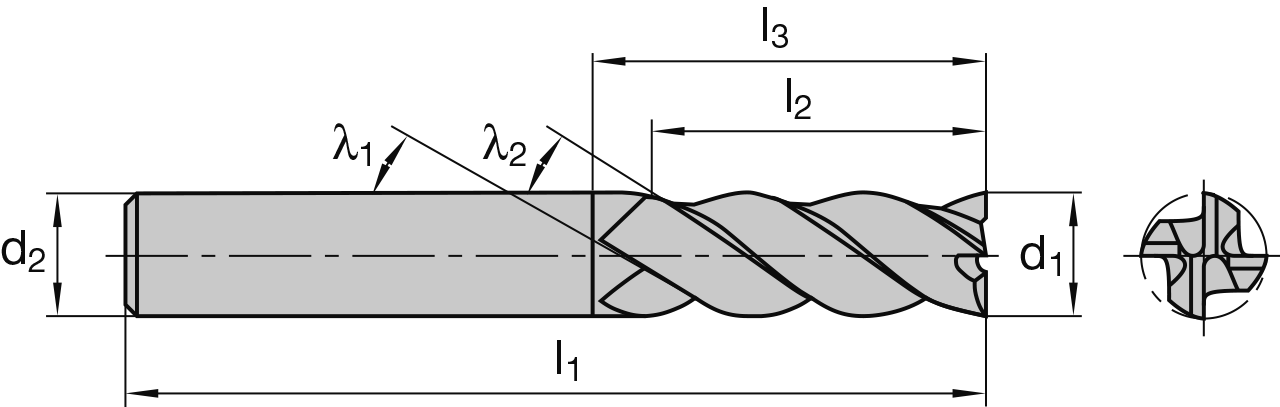

(A1) | (B2) | (B5) | (B4) | (C3) | (F22) | (B9) | |
|---|---|---|---|---|---|---|---|
7426040 | 4 | 5 | 54 | 8 | 6 | 4 | 8 |
7426053 | 4 | 8 | 54 | 12 | 6 | 4 | 12 |
7426041 | 5 | 6 | 54 | 10 | 6 | 4 | 10 |
7426054 | 5 | 10 | 54 | 15 | 6 | 4 | 15 |
7426042 | 6 | 7 | 54 | 16 | 6 | 4 | 16 |
7426055 | 6 | 13 | 57 | 21 | 6 | 4 | 21 |
7426063 | 6 | 9 | 65 | 29 | 6 | 4 | 29 |
7426043 | 8 | 9 | 58 | 20 | 8 | 4 | 20 |
7426056 | 8 | 19 | 63 | 27 | 8 | 4 | 27 |
7426064 | 8 | 12 | 75 | 39 | 8 | 4 | 39 |
7426044 | 10 | 11 | 66 | 24 | 10 | 4 | 24 |
7426057 | 10 | 22 | 72 | 32 | 10 | 4 | 32 |
7426065 | 10 | 15 | 80 | 40 | 10 | 4 | 40 |
7426045 | 12 | 12 | 73 | 26 | 12 | 4 | 26 |
7426058 | 12 | 26 | 83 | 38 | 12 | 4 | 38 |
7426066 | 12 | 18 | 93 | 48 | 12 | 4 | 48 |
7426046 | 14 | 14 | 75 | 28 | 14 | 4 | 28 |
7426059 | 14 | 26 | 83 | 38 | 14 | 4 | 38 |
7426047 | 16 | 16 | 82 | 32 | 16 | 4 | 32 |
7426060 | 16 | 32 | 92 | 44 | 16 | 4 | 44 |
7426067 | 16 | 24 | 108 | 60 | 16 | 4 | 60 |
7426048 | 18 | 18 | 84 | 34 | 18 | 4 | 34 |
7426061 | 18 | 32 | 92 | 44 | 18 | 4 | 44 |
7426049 | 20 | 20 | 92 | 40 | 20 | 4 | 40 |
7426062 | 20 | 38 | 104 | 54 | 20 | 4 | 54 |
7426068 | 20 | 30 | 126 | 76 | 20 | 4 | 76 |
