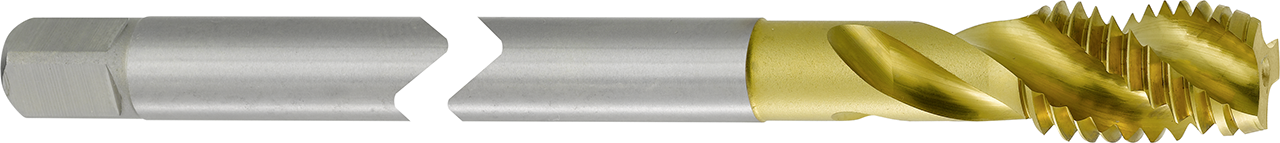

EASYTap Blind Hole (Type MF-6HX) Long
TC-CMF 10X1,25-6HX-ET45-11-2
: 7465475
P
K
M
N

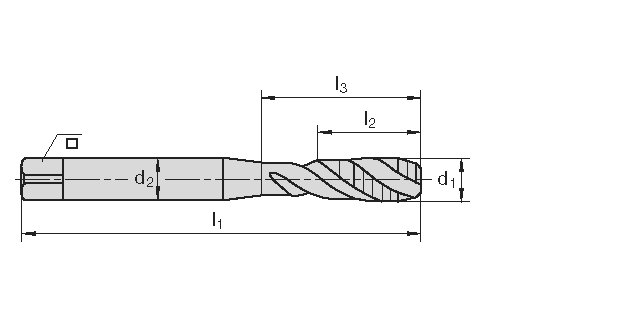

(A25) | (A1) | (A21) | (A3) | (B3) | (B1) | (D1) | |
|---|---|---|---|---|---|---|---|
7465475 | M10x1,25-6HX | MF | 10 | 1,25 | 200 | 12 | 3 |
7465474 | M10x1-6HX | MF | 10 | 1 | 180 | 10 | 3 |
7465476 | M12x1,25-6HX | MF | 12 | 1,25 | 200 | 12 | 3 |
7465477 | M12x1,5-6HX | MF | 12 | 1,5 | 200 | 14 | 3 |
7491487 | M14x1.5-6HX | MF | 14 | 1,5 | 200 | 16 | 3 |
7465478 | M16x1,5-6HX | MF | 16 | 1,5 | 200 | 16 | 3 |
7465479 | M20x1,5-6HX | MF | 20 | 1,5 | 250 | 16 | 4 |
7465473 | M8x1-6HX | MF | 8 | 1 | 180 | 10 | 3 |
