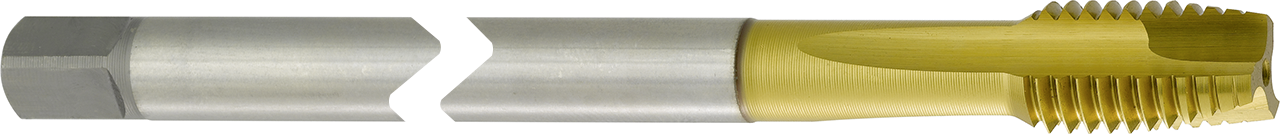

EASYTap Through Hole (Type M-6HX) Long
TC-BM 4X0,7-6HX-ET0-11-2
: 7465271
P
K
M
N
(A25) | (A1) | (A21) | (A3) | (B3) | (B1) | (D1) | |
|---|---|---|---|---|---|---|---|
7465266 | M10x1,5-6HX | M | 10 | 1,5 | 200 | 24 | 3 |
7465275 | M10x1,5-6HX | M | 10 | 1,5 | 200 | 24 | 3 |
7465267 | M12x1,75-6HX | M | 12 | 1,75 | 200 | 28 | 3 |
7465268 | M14x2-6HX | M | 14 | 2 | 200 | 30 | 3 |
7465269 | M16x2-6HX | M | 16 | 2 | 200 | 32 | 3 |
7465270 | M20x2,5-6HX | M | 20 | 2,5 | 200 | 34 | 3 |
7465261 | M3x0,5-6HX | M | 3 | 0,5 | 100 | 11 | 3 |
7465262 | M4x0,7-6HX | M | 4 | 0,7 | 125 | 13 | 3 |
7465271 | M4x0,7-6HX | M | 4 | 0,7 | 125 | 13 | 3 |
7465263 | M5x0,8-6HX | M | 5 | 0,8 | 160 | 16 | 3 |
7465272 | M5x0,8-6HX | M | 5 | 0,8 | 160 | 16 | 3 |
7465264 | M6x1-6HX | M | 6 | 1 | 160 | 19 | 3 |
7465273 | M6x1-6HX | M | 6 | 1 | 160 | 19 | 3 |
7465265 | M8x1,25-6HX | M | 8 | 1,25 | 180 | 22 | 3 |
7465274 | M8x1,25-6HX | M | 8 | 1,25 | 180 | 22 | 3 |
