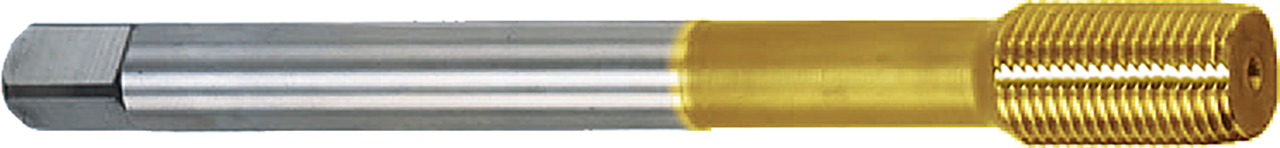

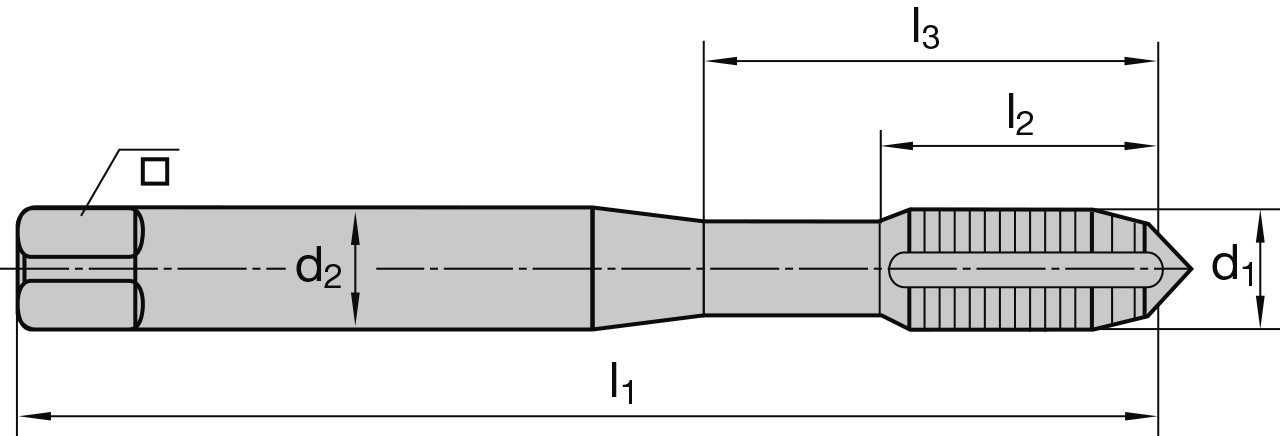

Forming Tap MF (Form C)
: 9128524
P
M
N
1401309 | M10x1,25-6HX | MF | 10 | 1,25 | 100 | 20 | 5 |
9128525 | M10x1,25-6HX | MF | 10 | 1,25 | 100 | 20 | 5 |
1401307 | M10x1-6HX | MF | 10 | 1 | 90 | 15 | 5 |
9128524 | M10x1-6HX | MF | 10 | 1 | 90 | 15 | 5 |
1401311 | M11x1-6HX | MF | 11 | 1 | 90 | 18 | 5 |
1401315 | M12x1,25-6HX | MF | 12 | 1,25 | 100 | 18 | 5 |
1401317 | M12x1,5-6HX | MF | 12 | 1,5 | 100 | 18 | 5 |
1401313 | M12x1-6HX | MF | 12 | 1 | 100 | 18 | 5 |
1401319 | M14x1,5-6HX | MF | 14 | 1,5 | 100 | 20 | 6 |
1401321 | M16x1,5-6H | MF | 16 | 1,5 | 100 | 20 | 6 |
1401323 | M18x1,5-6HX | MF | 18 | 1,5 | 110 | 20 | 6 |
1401325 | M20x1,5-6HX | MF | 20 | 1,5 | 125 | 20 | 7 |
1401303 | M8x1-6HX | MF | 8 | 1 | 90 | 14 | 5 |
9128523 | M8x1-6HX | MF | 8 | 1 | 90 | 18 | 5 |
1401305 | M9x1-6HX | MF | 9 | 1 | 90 | 15 | 5 |
