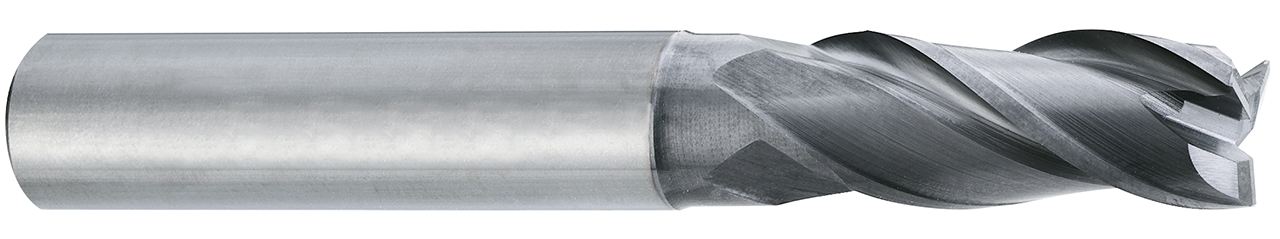

HPC01 Rougher 33/35/37 UNI
EM-HPC01 U5.0x10/15 3C0.15HA
: 7432445
P
S
K
M
N

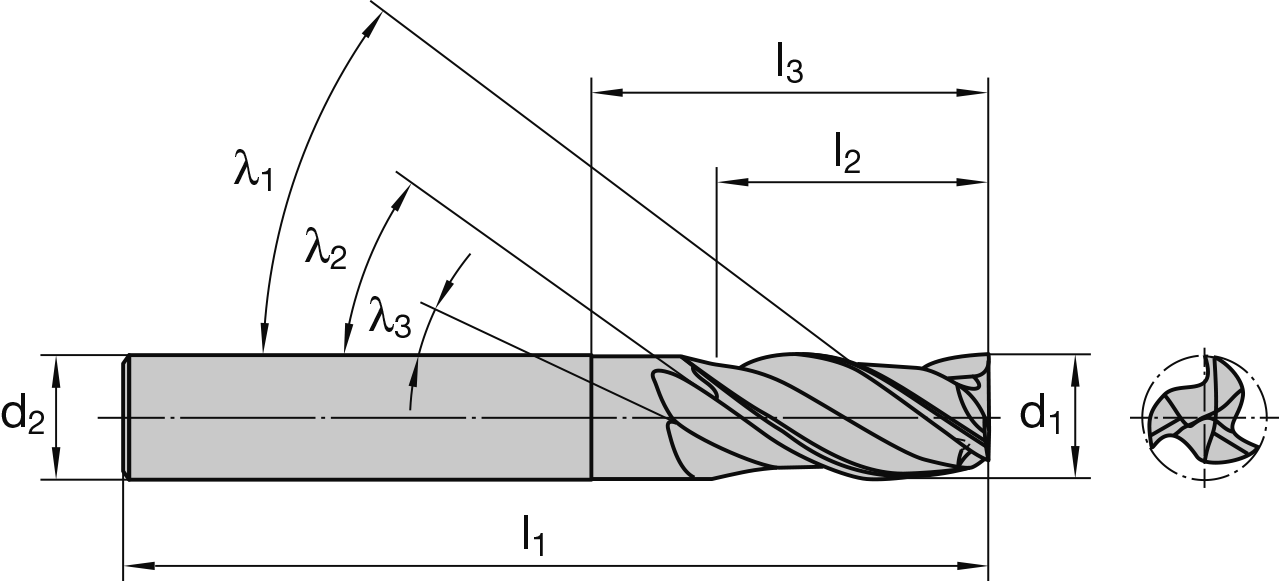

(A1) | (B2) | (B5) | (B4) | (C3) | (F22) | (B9) | |
|---|---|---|---|---|---|---|---|
7432428 | 4 | 5 | 54 | 8 | 6 | 3 | 8 |
7432444 | 4 | 8 | 54 | 12 | 6 | 3 | 12 |
7432429 | 5 | 6 | 54 | 10 | 6 | 3 | 10 |
7432445 | 5 | 10 | 54 | 15 | 6 | 3 | 15 |
7432430 | 6 | 7 | 54 | 16 | 6 | 3 | 16 |
7432446 | 6 | 13 | 57 | 21 | 6 | 3 | 21 |
7432431 | 8 | 9 | 58 | 20 | 8 | 3 | 20 |
7432447 | 8 | 19 | 63 | 27 | 8 | 3 | 27 |
7432432 | 10 | 11 | 66 | 24 | 10 | 3 | 24 |
7432448 | 10 | 22 | 72 | 32 | 10 | 3 | 32 |
7432433 | 12 | 12 | 73 | 26 | 12 | 3 | 26 |
7432449 | 12 | 26 | 83 | 38 | 12 | 3 | 38 |
7432434 | 16 | 16 | 82 | 32 | 16 | 3 | 32 |
7432450 | 16 | 32 | 92 | 44 | 16 | 3 | 44 |
7432435 | 20 | 20 | 92 | 40 | 20 | 3 | 40 |
7432451 | 20 | 38 | 104 | 54 | 20 | 3 | 54 |
