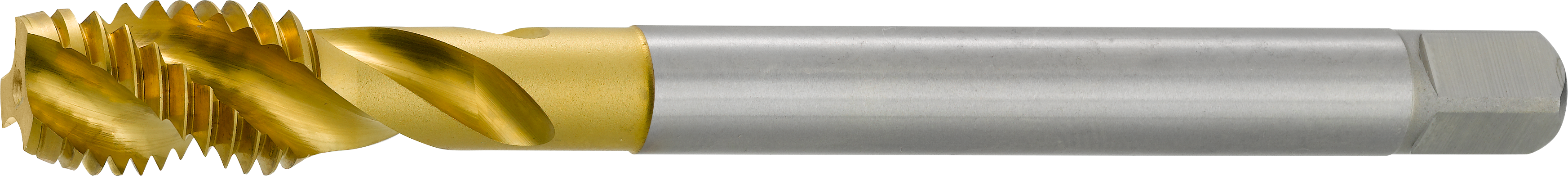

EASYTap Blind Hole (Type MF-6HX) LH
TC-CMF 10X1-6HX-ET45-11-A
: 7465481
P
K
M
N

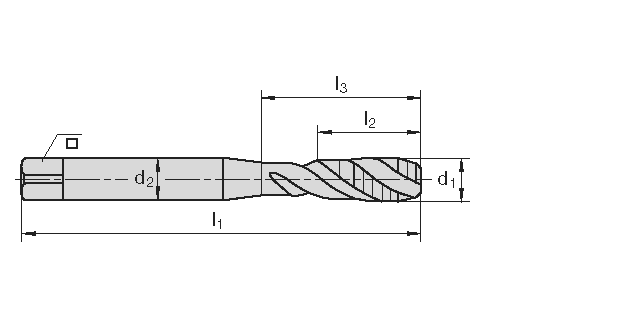

(A25) | (A1) | (A21) | (A3) | (B3) | (B1) | (D1) | |
|---|---|---|---|---|---|---|---|
7465482 | M10x1,25-6HX | MF | 10 | 1,25 | 100 | 12 | 3 |
7465481 | M10x1-6HX | MF | 10 | 1 | 90 | 10 | 3 |
7465483 | M12x1,25-6HX | MF | 12 | 1,25 | 100 | 12 | 3 |
7465484 | M12x1,5-6HX | MF | 12 | 1,5 | 100 | 14 | 3 |
7465485 | M16x1,5-6HX | MF | 16 | 1,5 | 100 | 16 | 3 |
7465486 | M20x1,5-6HX | MF | 20 | 1,5 | 125 | 16 | 4 |
7465487 | M24x1,5-6HX | MF | 24 | 1,5 | 140 | 16 | 4 |
7465480 | M8x1-6HX | MF | 8 | 1 | 90 | 10 | 3 |
