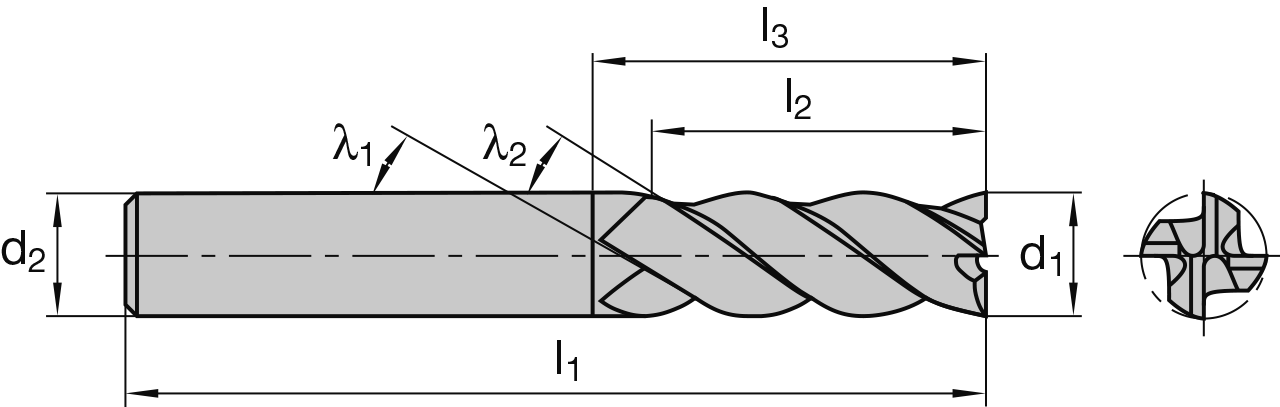

HPC01 Rougher 41/44M (Weldon Shank)
EM-HPC01 M20.0x20/40 4R0.4HB
: 7426795
S
M
(A1) | (B2) | (B5) | (B4) | (C3) | (F22) | (B9) | |
|---|---|---|---|---|---|---|---|
7426788 | 4 | 5 | 54 | 8 | 6 | 4 | 8 |
7426805 | 4 | 8 | 54 | 12 | 6 | 4 | 12 |
7426789 | 5 | 6 | 54 | 10 | 6 | 4 | 10 |
7426806 | 5 | 10 | 54 | 15 | 6 | 4 | 15 |
7426790 | 6 | 7 | 54 | 16 | 6 | 4 | 16 |
7426807 | 6 | 13 | 57 | 21 | 6 | 4 | 21 |
7426791 | 8 | 9 | 58 | 20 | 8 | 4 | 20 |
7426808 | 8 | 19 | 63 | 27 | 8 | 4 | 27 |
7426792 | 10 | 11 | 66 | 24 | 10 | 4 | 24 |
7426809 | 10 | 22 | 72 | 32 | 10 | 4 | 32 |
7426793 | 12 | 12 | 73 | 26 | 12 | 4 | 26 |
7426810 | 12 | 26 | 83 | 38 | 12 | 4 | 38 |
7432295 | 14 | 14 | 75 | 28 | 14 | 4 | 28 |
7426794 | 16 | 16 | 82 | 32 | 16 | 4 | 32 |
7426811 | 16 | 32 | 92 | 44 | 16 | 4 | 44 |
7432297 | 18 | 32 | 92 | 44 | 18 | 4 | 44 |
7426795 | 20 | 20 | 92 | 40 | 20 | 4 | 40 |
7426812 | 20 | 38 | 104 | 54 | 20 | 4 | 54 |
