EASYTap Blind Hole (Type UNF-2BX)
TC-CUNF 1/4-28X10,2-ET45-11
: 7465600
P
K
M
N

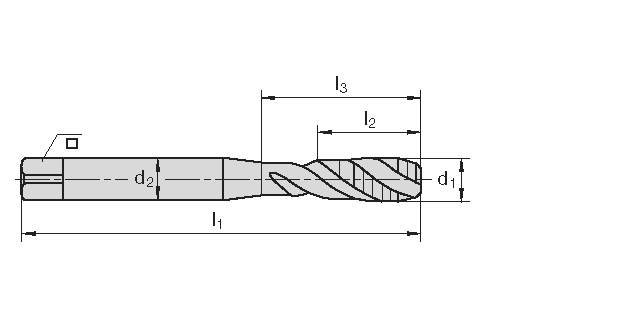

(A25) | (A1) | (A21) | (B3) | (B1) | (D1) | |
|---|---|---|---|---|---|---|
7465598 | #10-32UNF-2B | UNF | 4,826 | 70 | 8,5 | 2 |
7465599 | #12-28UNF-2B | UNF | 5,486 | 80 | 8,5 | 2 |
7465592 | #2-64UNF-2B | UNF | 2,184 | 45 | 3,6 | 2 |
7465593 | #3-56UNF-2B | UNF | 2,515 | 50 | 3,6 | 2 |
7465594 | #4-48UNF-2B | UNF | 2,845 | 56 | 5,1 | 2 |
7465595 | #5-44UNF-2B | UNF | 3,175 | 56 | 5,1 | 2 |
7465596 | #6-40UNF-2B | UNF | 3,505 | 56 | 6,4 | 2 |
7465597 | #8-36UNF-2B | UNF | 4,166 | 63 | 6,4 | 2 |
7465600 | 1/4-28UNF-2B | UNF | 6,35 | 80 | 10,2 | 2 |
7465604 | 1/2-20UNF-2B | UNF | 12,7 | 100 | 15,6 | 3 |
7465609 | 1-12UNF-2B | UNF | 25,4 | 140 | 31,8 | 4 |
7465602 | 3/8-24UNF-2B | UNF | 9,525 | 90 | 12,7 | 3 |
7465607 | 3/4-16UNF-2B | UNF | 19,05 | 110 | 25,4 | 4 |
7465601 | 5/16-24UNF-2B | UNF | 7,938 | 90 | 11,3 | 3 |
7465606 | 5/8-18UNF-2B | UNF | 15,875 | 100 | 18,5 | 3 |
7465603 | 7/16-20UNF-2B | UNF | 11,113 | 100 | 14,5 | 3 |
7465608 | 7/8-14UNF-2B | UNF | 22,225 | 125 | 28,2 | 4 |
7465605 | 9/16-18UNF-2B | UNF | 14,288 | 100 | 16,9 | 3 |
