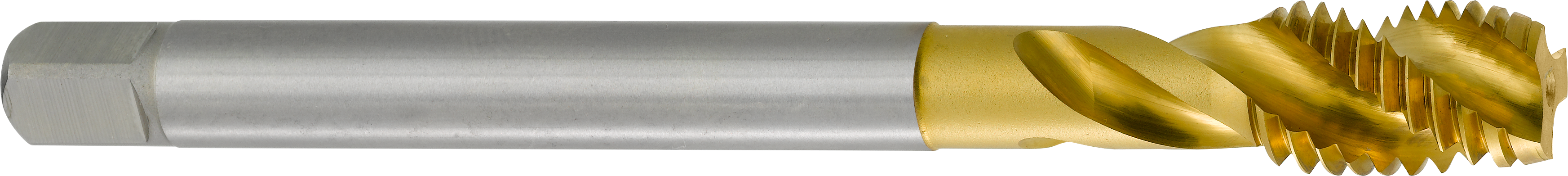

EASYTap Blind Hole (Type EGM)
TC-EEGM 6,039X0,8-6HX
: 7465503
P
K
M
N
(A25) | (A1) | (A21) | (A3) | (B3) | (B1) | (D1) | |
|---|---|---|---|---|---|---|---|
7465506 | EGM10x1,5-6HX | EGM | 11,949 | 1,5 | 100 | 15 | 3 |
7465507 | EGM12x1,75-6HX | EGM | 14,273 | 1,75 | 110 | 18 | 3 |
7465508 | EGM16x2-6HX | EGM | 18,598 | 2 | 125 | 20 | 4 |
7465500 | EGM2,5x0,45-6HX | EGM | 3,085 | 0,45 | 56 | 5 | 3 |
7465509 | EGM20x2,5-6HX | EGM | 23,248 | 2,5 | 160 | 25 | 4 |
7465499 | EGM2x0,4-6HX | EGM | 2,52 | 0,4 | 50 | 4,5 | 2 |
7465501 | EGM3x0,5-6HX | EGM | 3,65 | 0,5 | 63 | 5 | 3 |
7465502 | EGM4x0,7-6HX | EGM | 4,909 | 0,7 | 70 | 7 | 3 |
7465503 | EGM5x0,8-6HX | EGM | 6,039 | 0,8 | 80 | 8 | 3 |
7465504 | EGM6x1-6HX | EGM | 7,299 | 1 | 90 | 10 | 3 |
7465505 | EGM8x1,25-6HX | EGM | 9,624 | 1,25 | 100 | 13 | 3 |
